IS626-10-GH-P1-E1-S1 | Intrinsically safe pressure transmitter | 100 psi pressure range | 4-20 mA output | 1/4" NPTM | general purpose housing. | Dwyer

Intrinsically safe pressure transmitter, 100 psi pressure range, 4-20 mA output, 1/4" NPTM, general purpose housing.

Brand: DwyerSKU: IS626-10-GH-P1-E1-S1

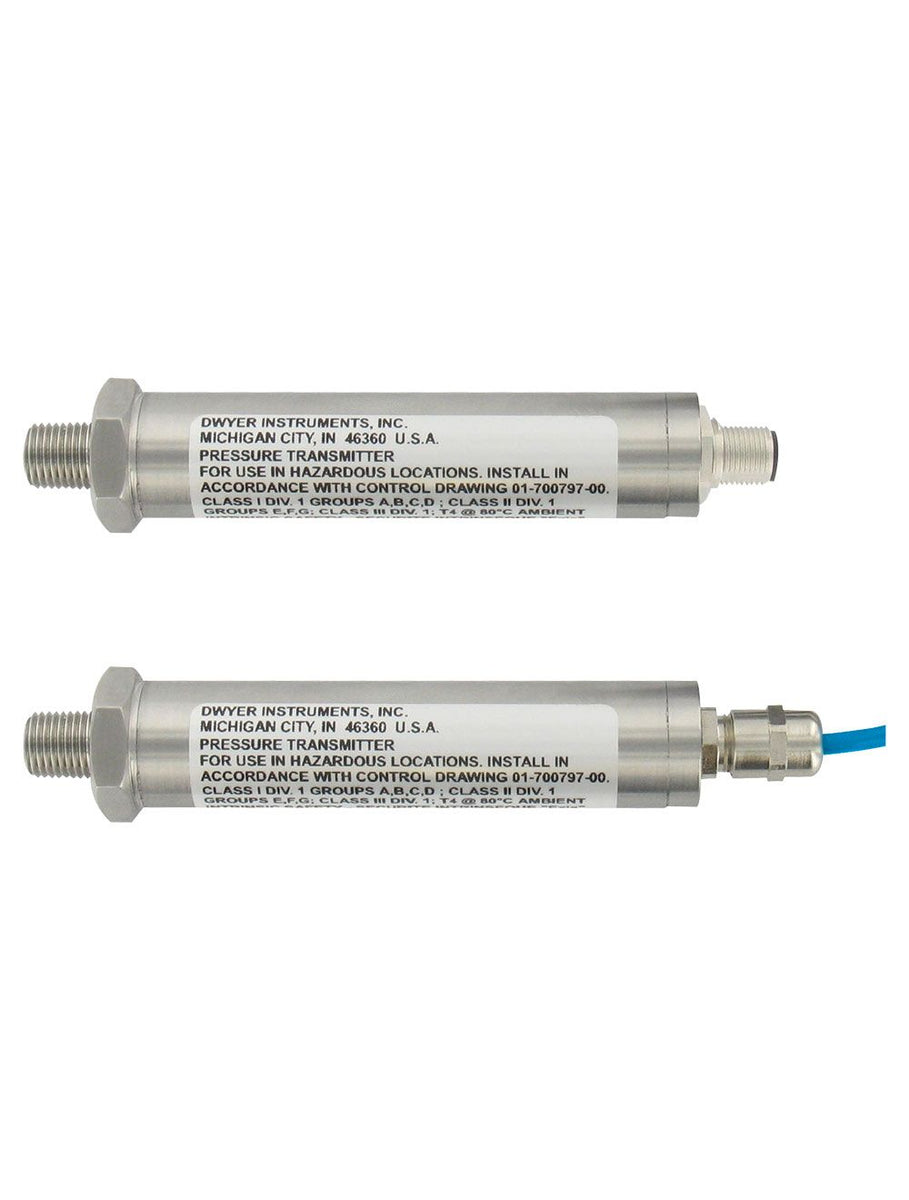

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to IS626-10-GH-P1-E1-S1

Jump to: Overview & Specifications Reviews

Overview Details for IS626-10-GH-P1-E1-S1

See catalog product page for full listing

Intrinsically safe pressure transmitter | 100 psi pressure range | 4-20 mA output | 1/4" NPTM | general purpose housing.

SERIES IS626 INTRINSICALLY SAFE PRESSURE TRANSMITTER

For Use In Hazardous Locations

The Dwyer Series IS626 Intrinsically Safe Pressure Transmitter can be used to accurately measure compatible gases and liquids compatible with its 316/316L Stainless Steel wetted parts. Series IS626 full scale accuracy is 0.25%. Designed for industrial environments with a NEMA 4X (IP66) housing, this transmitter resists most effects of shock and vibration. Models are available with a 3' cable or M-12 4 pin connection.

The IS626 is UL listed for use in Hazardous (Classified) Locations. The protection method is by Intrinsic Safety,"ia". It was investigated by UL under UL Standard 913 Sixth Edition and CSA Standard No. 157-92.

NIST CALIBRATION available in Product Configurator.

Product Applications

Monitoring pressure in hazardous environments
Process

Exceptional accuracy for ensuring tight-control and minimizing costly out ofspecification conditions
NEMA 4X rated enclosure provides protection in harsh environments permittingoutdoor monitoring or in areas where dust and particulate matter exists
Robust sensor provides shock and vibration resistance insuring stability in controllingpressure for process applications

Specifications

Series: IS626 INTRINSICALLY SAFE PRESSURE TRANSMITTER
Category/Type: Pressure
Type: Single Pressure
Series: IS626 INTRINSICALLY SAFE PRESSURE TRANSMITTER
Service: Compatible gases and liquids.
Wetted Materials: Type 316; 316L SS.
Accuracy: 0.25% FS.
Temperature Limit: 0 to 176°F (-18 to 80°C).
Compensated Temperature Range: 0 to 176°F (-18 to 80°C).
Thermal Effect: ±0.02% FS/°F (includes zero and span).
Pressure Limits: See Catalog page.
Power Requirements: 10 to 28 VDC.
Output Signal: 4 to 20 mA.
Response Time: 50 ms.
Loop Resistance: 0 - 900 Ω maximum.
Current Consumption: 38 mA (maximum).
Electrical Connections: 3 ft. cable or 4-pin M-12 Connector.
Process Connection: 1/4" male/female NPT and BSPT.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Mount in any position.
Weight: 8.9 oz (252 g).
Agency Approvals: CE; cULus Intrinsically Safe to UL Standard 913.
: For use in Hazardous (Classified) Locations:Class I Div. 1 Groups A;B;C;D; Class II Div. 1 Groups E;F;G; Class III Div. 1.Temperature Code: T4 @ 80°C ambient.Install in accordance with control drawing 01-700797-00.WARNING: To prevent ignition of flammable or combustible atmospheres; disconnect power before servicing. Use with approved safety barriers using entity evaluation.
