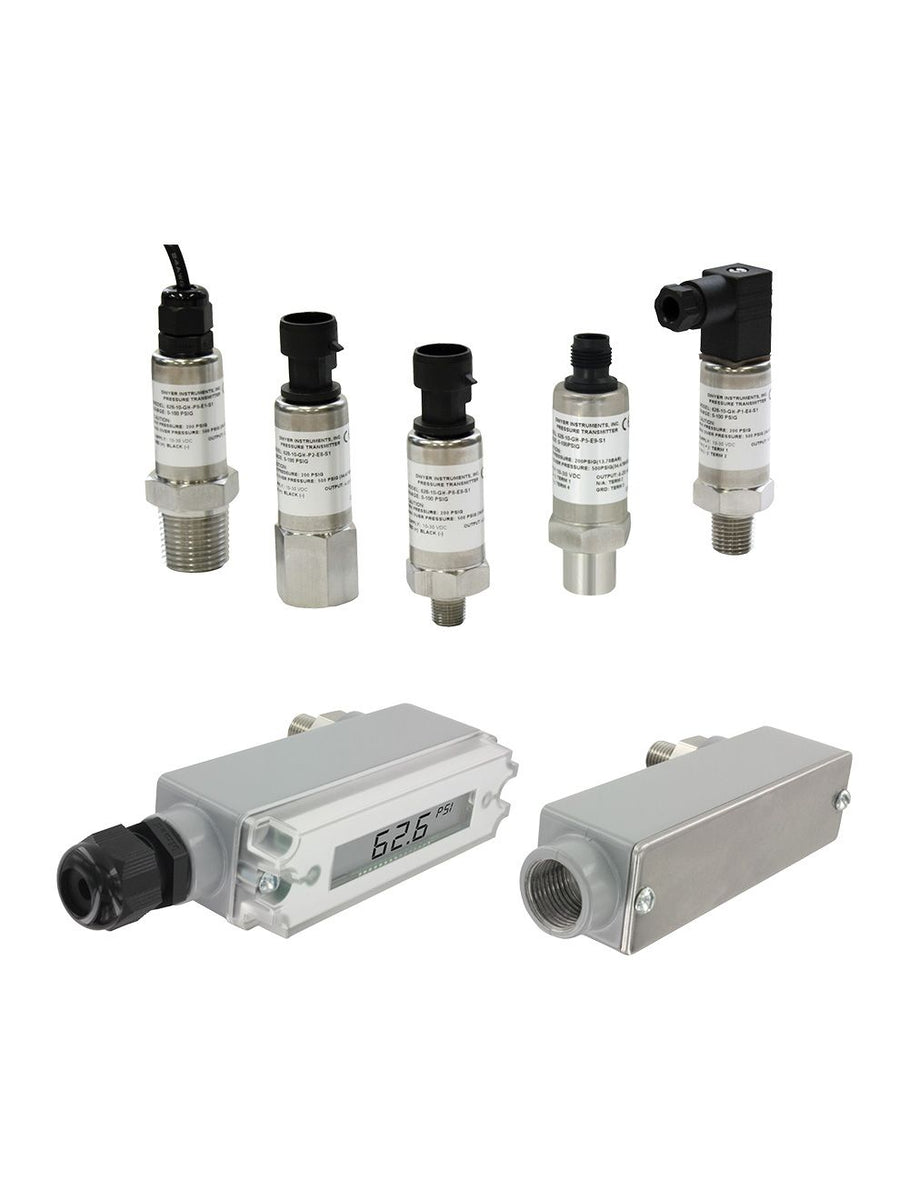

628-12-GH-P1-E1-S1 | Industrial pressure transmitter | range 0-200 psig | general purpose housing | 1/4" male NPT | 3' cable | 4-20 mA | max. pressure 400 psig | over pressure 1000 psig. | Dwyer

Industrial pressure transmitter, range 0-200 psig, general purpose housing, 1/4" male NPT, 3' cable, 4-20 mA, max. pressure 400 psig, over pressure 1000 psig.

Brand: DwyerSKU: 628-12-GH-P1-E1-S1

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 628-12-GH-P1-E1-S1

Jump to: Overview & Specifications Reviews

Overview Details for 628-12-GH-P1-E1-S1

See catalog product page for full listing

Series 626 & 628 Industrial Pressure Transmitter

Complete Offering of Ranges, Connections and Outputs

The Series 626 Industrial Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing. The Series 628 Industrial Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and gage pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.

NIST CALIBRATION available in Product Configurator.

Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.

Product Applications

Compressors
Pumping Systems
Irrigation System Pressure
Industrial Process Monitoring
Hydraulic

Robust 316L SS oil filled sensor provides shock and vibration resistance insuringstability in controlling pressure for process applications
NEMA 4X rated enclosure provides protection in harsh environments permittingoutdoor monitoring or in areas where dust and particulate matter exists
A wide range of models and connections that can meet pressure measurementspecifications from low to very high

Specifications

Series: 626 & 628 Industrial Pressure Transmitter
Category/Type: Pressure
Type: Single Pressure
Series: 626 & 628 Industrial Pressure Transmitter
Service: Compatible gases and liquids.
Wetted Materials: Type 316L SS.
Accuracy: 626: 0.25% FS; 626: 0.20% RSS; 628: 1.0% FS; 628: 0.5% RSS; 626 Absolute Ranges: 0.5% FS; 626 absolute ranges: 0.30% RSS. (Includes linearity; hysteresis; and repeatability.)
Temperature Limit: 0 to 200°F (-18 to 93°C).
Compensated Temperature Range: 0 to 175°F (-18 to 79°C).
Thermal Effect: ±0.02% FS/°F. (includes zero and span).
Pressure Limits: See table on catalog page.
Power Requirements: 10 to 30 VDC (for 4 to 20 mA; 0 to 5; 1 to 5; 1 to 6VDC outputs); 13 to 30 VDC (for 0 to 10; 2 to 10 VDC outputs); 5 VDC ±0.5 VDC(for 0.5 to 4.5 VDC ratio-metric output); 10 to 35 VDC (for 4 to 20 mA with -CBoption); 13 to 35 VDC or isolated 16 to 33 VAC (for selectable output with -CBoption).
Output Signal: 4 to 20 mA; 0 to 5 VDC;1 to 5 VDC; 0 to 10 VDC; or 0.5 to 4.5VDC; or selectable 0 to 5; 1 to 5; 0 to 10; 2 to 10 VDC for -CB option.
Response Time: 300 ms.
Loop Resistance: 0-1000 Ω max. R max = 50 (Vps-10) Ω (4-20 mA output); 5 KΩmin (0-5; 1-5; 0.5-4.5 VDC output); 15 KΩ min (1-6; 0-10; 2-10 VDC output).
Stability: 1.0% FS/year (Typ.).
Current Consumption: 38 mA maximum (for 4 to 20 mA output); 10 mA maximum (for 0 to 5; 1 to 5; 1 to 6; 0 to 10; 2 to 10; 0.5 to 4.5 VDC output); 140 mA maximum (for all 626/628/629-CH with optional LED).
Electrical Connections: Model dependent options: Wire end; Hirschman DIN EN 175801-803-C; Packard; Deutsch; M12.
Process Connection: Model dependent options: 1/8"; 1/4"; 1/2" male NPT; 1/4" female NPT; 1/4" male or female BSPT; 1/8" or 1/4" male BSPP ISO 1179; 1/4"female SAE valve depressor.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Mount in any position.
Weight: 10 oz (283 g).
Compliance: CE; Optional: NSF/ANSI 61/372; ANSI/UL 218; ANSI/UL 508; NEPA 20.
