CMT200 | Carbon Monoxide Transmitter | 0 to 200 PPM CO | 4 to 20 mA/2 to 10 VDC outputs. | Dwyer
Carbon Monoxide Transmitter, 0 to 200 PPM CO, 4 to 20 mA/2 to 10 VDC outputs.

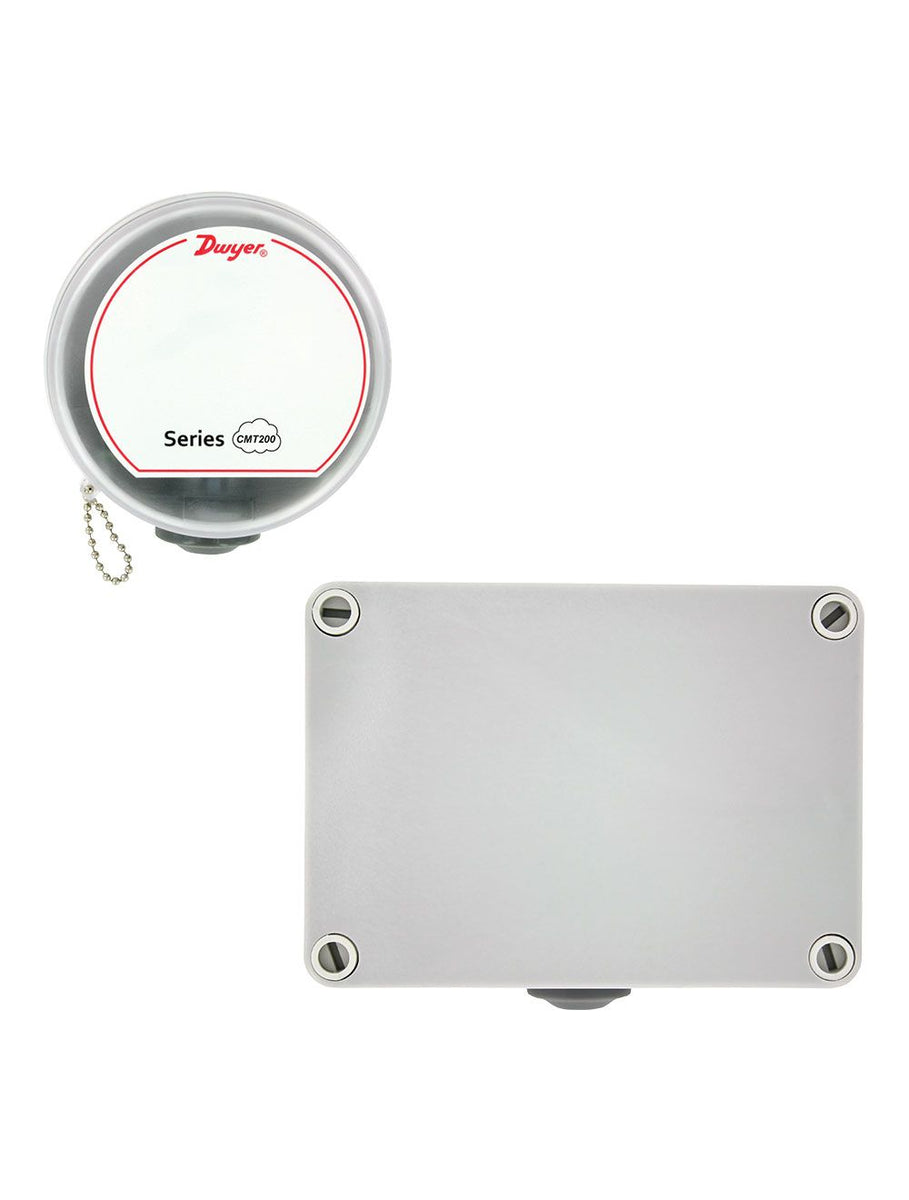

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CMT200
Documents and manuals
Dwyer CMT200 Documents
Overview
Details for CMT200
See catalog product page for full listing
Carbon Monoxide Transmitter | 0 to 200 PPM CO | 4 to 20 mA/2 to 10 VDC outputs.
SERIES CMT200 CARBON MONOXIDE TRANSMITTER
Current/Voltage Selectable Output, 200 PPM Range
The Series CMT200 Carbon Monoxide Transmitter provides a field selectablecurrent or voltage output that is proportional to the gas concentration in undergroundparking garages, vehicle maintenance facilities, or mechanical rooms. A field replaceable,electrochemical sensor provides accurate readings for up to 4 years with proper calibration.Field calibration can be done by using Model GCK-200CO-2000CO2 calibration gas, ModelA-507A calibration adapter, and the on board span and zero potentiometers.
Product Applications
- Garage ventilation
- Mechanical room monitoring
- Field selectable current or voltage outputs
- Replaceable sensor
- Field calibration kits
Specifications
- Series
- CMT200 CARBON MONOXIDE TRANSMITTER
- Category/Type
- Air Quality
- Type
- Carbon Monoxide Transmitters
- Series
- CMT200 CARBON MONOXIDE TRANSMITTER
- Sensor
- Field replaceable electrochemical; 4 year typical lifespan.
- Range
- 0 to 200 ppm.
- Coverage Area
- 5000 to 7000 sq. ft. typical.
- Accuracy
- ±2% FS at the time of calibration.
- Output Drift
- <5% per year in air.
- Temperature Limits
- -4 to 122°F (-20 to 50°C).
- Storage Temperature
- For best sensor life; 32 to 68°F (0 to 20°C).
- Humidity Limits
- 15 to 90% RH constant; 0 to 99% RH intermittent.
- Response Time
- <45 s. to 90% of final value.
- Calibration
- 15 turn span and zero adjustment potentiometers.
- Housing
- UV resistant polycarbonate.
- Output
- Jumper selectable 4 to 20 mA(loop powered) or 2 to 10 V (load mustbe >50 kΩ).
- Power Requirements
- Current Output: 18 to 28 VDC;Voltage Output: 18 to 28 VDC/VAC;reverse polarity protected.
- Electrical Connection
- Removableterminal block; includes two PG11 andone PG 16 knockouts for conduit fitting.
- Weight
- 0.28 lb (0.11 kg).
- Agency Approvals
- CE.
