Documents: 784XDXM4L-120A

Series 784 Catalog Page More Info

784XDXM4L-120A | 4PDT ice cube relays | 15 amp rating | 120 VAC 50/60 Hz | coil resistance 2220Ω | Dwyer

4PDT ice cube relays, 15 amp rating, 120 VAC 50/60 Hz, coil resistance 2220Ω

Brand: DwyerSKU: 784XDXM4L-120A

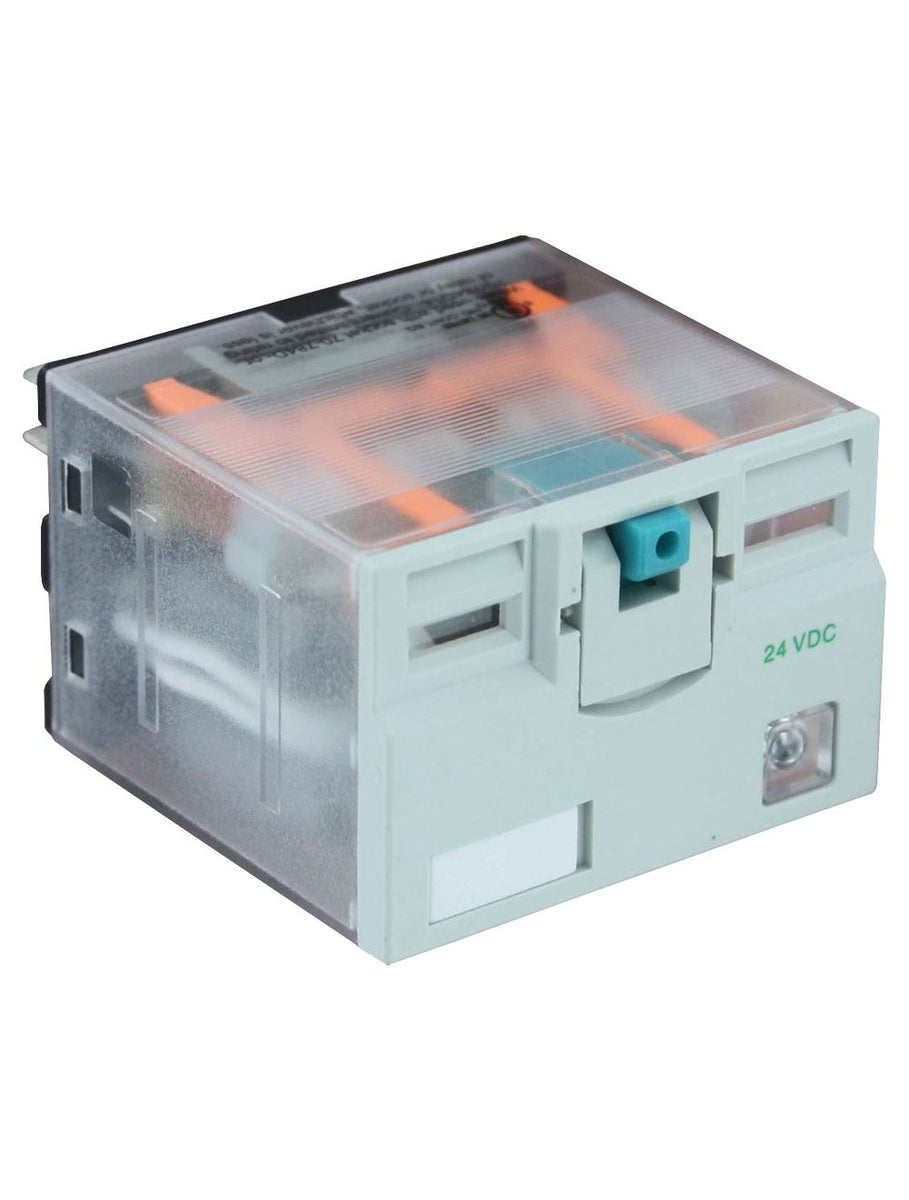

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 784XDXM4L-120A

Jump to: Overview & Specifications Reviews

Overview Details for 784XDXM4L-120A

See catalog product page for full listing

4PDT ice cube relays | 15 amp rating | 120 VAC 50/60 Hz | coil resistance 2220Ω

Series 784 4PDT Ice Cube Relays

15 Amp, 4PDT Operation

The Series 783 & 784 Ice Cube Relays are full-featured relays that can be used to handle loads up to 15 amps for AC or DC circuits. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color coded and a removable lock-down lever holds the test button in place.

Product Applications

Refrigeration compressor systems
HVAC motor controls
Water/wastewater pump control

Quick installation and replacement using socket mounting
Simplified diagnosis with flag and LED status indicators and color-coded push-to-test button

Specifications

Series: 784 4PDT Ice Cube Relays
Category/Type: Process Control
Type: Relays
Series: 784 4PDT Ice Cube Relays
Operating and Load Voltage Range: 24 to 240 VAC; 24 VDC.
Electrical Connection: Silver alloy plug-in contacts.
Switching Operation: 3PDT or 4PDT.
Electrical Rating: 15 A @ 120 VAC50/60Hz; 12 A @ 277 VAC 50/60 Hz or28 VDC.
Temperature Limits: Storage: -40 to185°F (-40 to 85°C); Operation: -40 to131°F (-40 to 55°C).
Power Consumption: 1.5 VA; 1.5 W.
Cycle Life: 100;000 cycles (electrical);10;000;000 cycles (mechanical).
Housing: Plastic polycarbonate.
Weight: 2.8 oz (80 g).
Agency Approvals: CE; CSA; cULus; cURus.
