782XBXM4L-24A | DPDT ice cube relays | 15 amp rating | 24 VAC 50/60 Hz | coil resistance 180Ω | Dwyer
DPDT ice cube relays, 15 amp rating, 24 VAC 50/60 Hz, coil resistance 180Ω
Documents and manuals
Dwyer 782XBXM4L-24A Documents
Overview
Details for 782XBXM4L-24A
DPDT ice cube relays | 15 amp rating | 24 VAC 50/60 Hz | coil resistance 180Ω

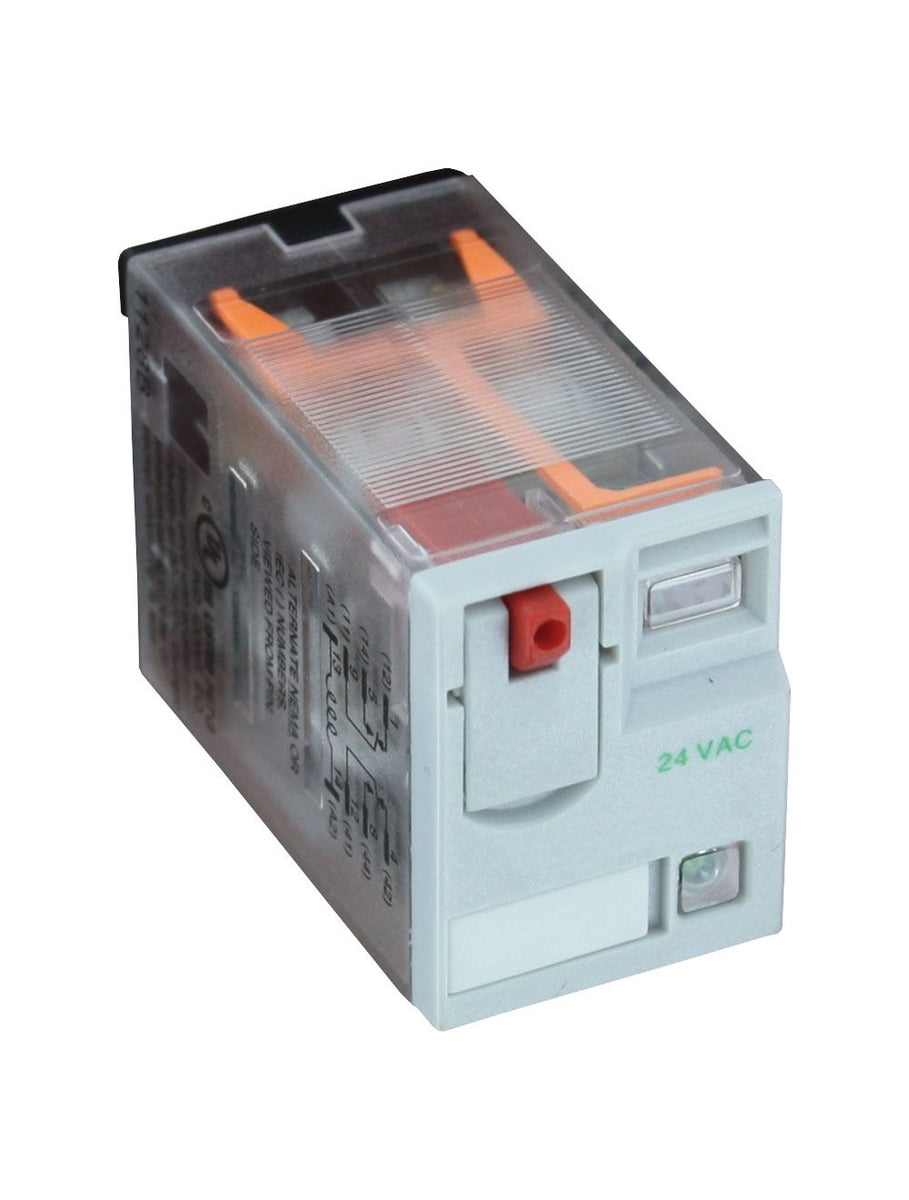

Series 782 DPDT Ice Cube Relays
The Series 782 Electromechanical Ice Cube Relay is a full-featured DPDT relay that can be used to switch two different devices with a single trigger. With a rating of 15 amps, the relay can be used to stop and start small fans, motors, and pumps directly. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color-coded. For testing the operation, a removable lock-down lever holds the test button in place. The clear plastic housing gives a view of the contacts, and there is a removable I.D. tag for labeling the circuit.
Product Applications
- Refrigeration compressor systems
- HVAC motor controls
- Water/wastewater pump control
- Clear plastic housing to easily view the contacts
- Flag and LED status indicators for visual confirmation of relay state
- Socket mounted for quick installation/replacement
Specifications
- Series
- 782 DPDT Ice Cube Relays
- Category/Type
- Process Control
- Type
- Relays
- Series
- 782 DPDT Ice Cube Relays
- Operating and Load Voltage Range
- 24 to 240 VAC; 24 VDC.
- Electrical Connection
- Silver alloy plug-in contacts.
- Switching Operation
- DPDT.
- Electrical Rating
- 15 A @ 120 VAC 50/60Hz; 12 A @ 277 VAC 50/60 Hz or 28 VDC (UL);10 A @ 277 VAC 50/60 Hz (CSA).
- Temperature Limits
- Storage: -40 to 185°F (-40 to 85°C);Operation: -40 to 131°F (-40 to 55°C).
- Power Consumption
- 1.2 VA; 0.9W.
- Cycle Life
- 100;000 cycles (electrical); 10;000;000 cycles (mechanical).
- Housing
- Plastic polycarbonate.
- Weight
- 1.3 oz (36 g).
- Agency Approvals
- CE; CSA; RoHS; cUL; UL; cUR; UR.
