3100D-5-FM-1-1 | Smart differential pressure transmitter | range 0-100 psi. | Dwyer

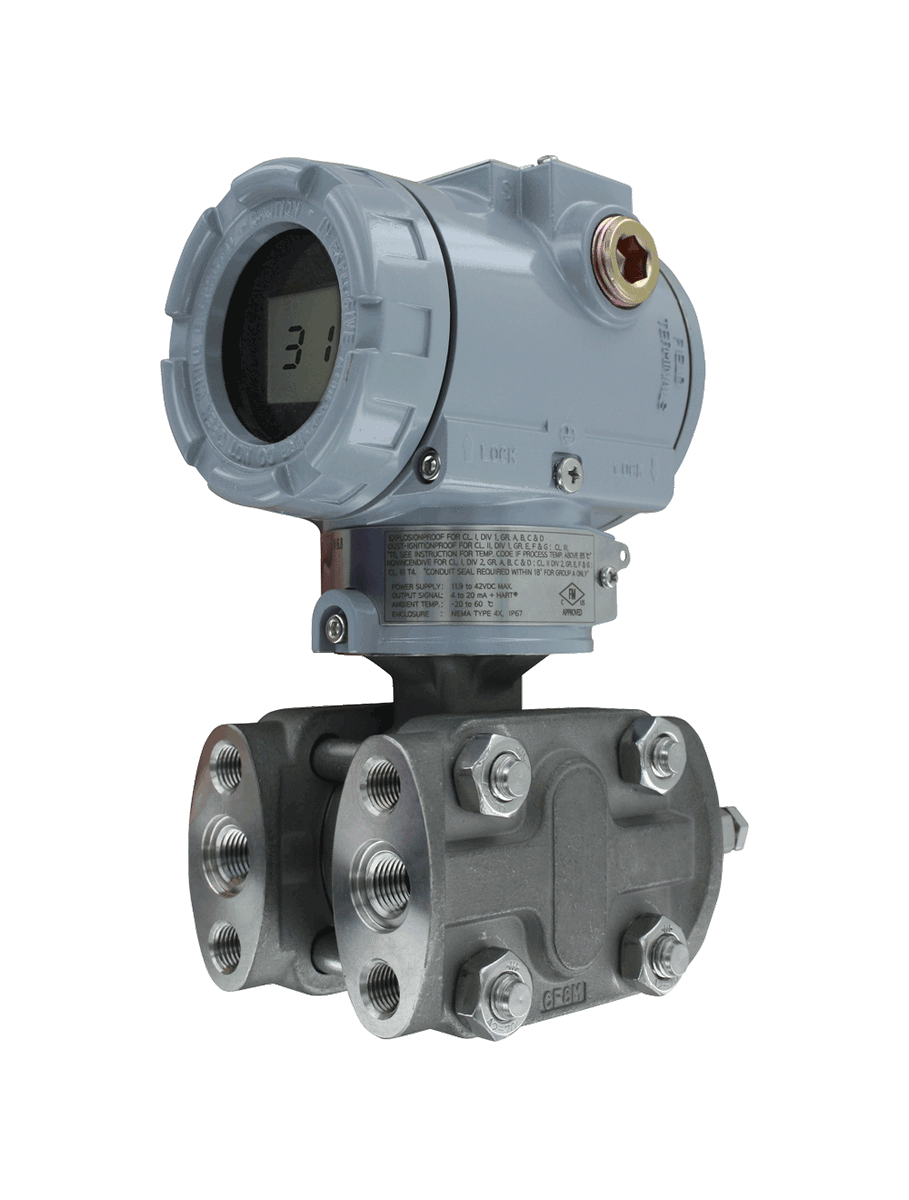

Smart differential pressure transmitter, range 0-100 psi.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3100D-5-FM-1-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer 3100D-5-FM-1-1 Documents

Instruction Manual Series 3100D Catalog Page More Info

Overview

Details for 3100D-5-FM-1-1

See catalog product page for full listing

Smart differential pressure transmitter | range 0-100 psi.

Series 3100D Explosion-proof Differential Pressure Transmitter

HART® Communication, Push Button Configuration, Rangeability (100:1)

Mercoid® Series 3100D Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication. The Series 3100D is capable of being configured for differential pressure or level applications with the zero and span buttons. A field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3100D is FM or ATEX approved for use in hazardous (classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.

Product Applications

Flow measurement
Level monitoring
Filter or pump differential pressure
Critical process monitoring

Configurable using zero/span buttons means no calibrator required reducing time to install and running
Range-ability and selectable engineering units, allows transmitter to fit many applications reducing the number of different transmitters to meet specifications
High accuracy (±0.075%) provides exceptional measurement for ensuring tight control and minimizing costly out of specification conditions
Automatic sensor temperature compensation improves performance of device for accurate measurement under different operating environments
Fail-mode process function stores configuration settings in the event of shutdown or power-loss provides for faster restart to getting application back on-line
A HART® Communication programmable device provides a reliable, long-term solution for plant operators who seek the benefits of intelligent devices with digital communication

Specifications

Series: 3100D Explosion-proof Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 3100D Explosion-proof Differential Pressure Transmitter
Service: Compatible gases; steam; liquids or vapors.
Wetted Materials: 316L SS; fluoroelastomer.
Accuracy: ±0.075% FS (@ 20°C).
Rangeability: 100:1 turn down.
Stability: ±0.125% FSO/yr.
Temperature Limits: Process: -40 to 248°F (-40 to 120°C); Ambient (without LCD): -40 to 185°F (-40 to 85°C); Ambient (with LCD): -22 to 176°F (-30 to 80°C).
Pressure Limits: Max. pressure: Range: -14.5 to 2000 psi; Burst pressure: 10000 psi.
Thermal Effect: ±0.125% span/32°C.
Power Requirements: 11.9 to 45 VDC.
Output Signal: 4 to 20 mA/HART® Communication.
Response Time: 0.12 seconds.
Damping Time: 0.25-60 seconds.
Loop Resistance: Operation: 0 to 1500 Ohm; HART® Communication: 250 to 500 Ohm.
Electrical Connection: Two 1/2" female NPT conduit; screw terminal.
Process Connection: 1/4" female NPT.
Display: Optional 5 digit LCD.
Enclosure Rating: NEMA 4X (IP66) and explosion-proof for Class I; Div I; Groups A; B; C and D.
Weight: 8.6 lb (3.9 kg).
Agency Approvals: CE; FM; ATEX option available (consult factory).
