2-5000-500PA | Differential pressure gage | range 0-500 Pa. | Dwyer

Differential pressure gage, range 0-500 Pa.

Brand: DwyerSKU: 2-5000-500PA

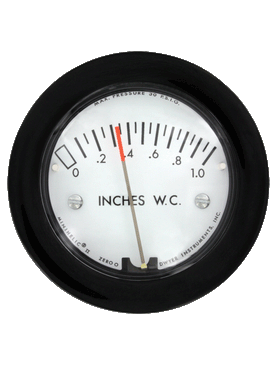

Dwyer | 2-5000-500PA
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2-5000-500PA

Overview Details for 2-5000-500PA

See catalog product page for full listing

Differential pressure gage | range 0-500 Pa.

Series 2-5000 Minihelic® II Differential Pressure Gage

Combining High Accuracy, Compactness, Dependability, and Low Cost

Combining clean design, small size and low cost with enough accuracy for all but the most demanding applications our Series 2-5000 Minihelic® II Differential PressureGage offers the latest in design features for a dial type differential pressure gage. It is our most compact gage but is easy to read and can safely operate at total pressures up to 30 psig.

NIST CALIBRATION available in Product Configurator.

DID YOU KNOW that you can add YOUR logo to our Minihelic® Pressure Gage, call customer service for details.

Product Applications

  • Room Positive Pressure Sensing
  • Local Indication on Filter Status
  • Removable lens and rear-housing provides easy, cost-effective servicing
  • Accuracy and value provides an excellent solution for OEM and user applications
  • Durable housing materials make it well-suited for rough environments and total highpressure

Specifications

Series
2-5000 Minihelic® II Differential Pressure Gage
Category/Type
Pressure
Type
Differential Pressure
Series
2-5000 Minihelic® II Differential Pressure Gage
Service
Air and compatible gases.
Wetted Materials
Consult factory.
Housing
Glass filled nylon; polycarbonate lens.
Accuracy
±5% of FS at 70°F (21.1°C).
Pressure Limits
30 psig (2.067 bar) continuous to either pressure connection.
Temperature Limits
20 to 120°F (-6.67 to 48.9°C).
Mounting Orientation
Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections
Barbed; for 3/16" ID tubing (standard); 1/8" male NPT (optional).
Weight
6 oz (170.1g).
Agency Approvals
Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE NON-CORROSIVE GASES.
