16C-5 | 1/16 DIN temperature controller | current output. | Dwyer
1/16 DIN temperature controller, current output.
Documents and manuals
Overview
Details for 16C-5
1/16 DIN temperature controller | current output.

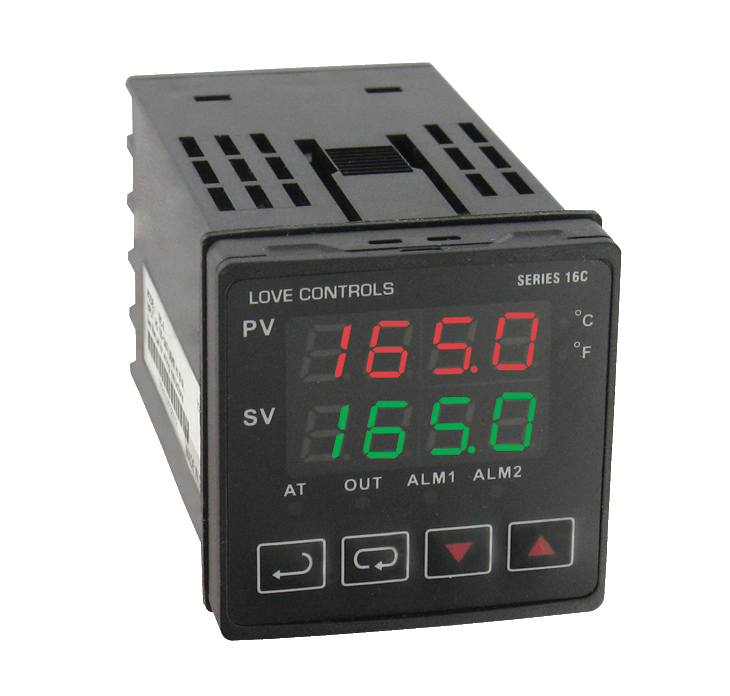

Series 16C 1/16 DIN Temperature Controller
The compact Series 16C Temperature Controller offers accurate temperature measurement and control in a 1/16 DIN package. Designed for direct or reverse acting (cooling or heating) control, the Series 16C can be programmed for simple ON/OFF or more complex PID control functions. PID control is supported with manual or auto-tuning. Select relay, voltage or current output for control methods.
The Series 16C accepts a variety of thermocouple and RTD inputs. Process value and setpoint value are displayed simultaneously on the large dual LED. Auto-tuning, engineering units (°F or °C), and alarm status is also indicated on the faceplate. Two alarm outputs are included on the unit with 12 preprogrammed alarm functions.
Product Applications
- Oven, boiler, or chiller control
- Hot plates/melt pots
- Food service equipment
- Environmental chambers
- Packaging equipment
- Universal input accepts RTD or thermocouple sensors
- On/Off, PID, or manual output control
- RS-485 standard on all models
Specifications
- Series
- 16C 1/16 DIN Temperature Controller
- Category/Type
- Process Control
- Type
- Process Controllers
- Series
- 16C 1/16 DIN Temperature Controller
- Inputs
- Thermocouple & RTD (see Catalog page).
- Display
- Two 4-digit; 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
- Accuracy
- ±0.25% span; ±1 least significant digit.
- Supply Voltage
- 100 to 240 VAC; 50/60 Hz.
- Power Consumption
- 5 VA max.
- Operating Temperature
- 32 to 122°F (0 to 50°C).
- Memory Backup
- Nonvolatile memory.
- Control Output Ratings
- Relay: SPST; 5 A @ 250 VAC resistive; Voltage Pulse: 14 V; 10% to -20% (max 40 mA); Current: 4 to 20 mA.
- Communication
- RS-485 Modbus® ASCII communication protocol.
- Weight
- 4 oz (114 g).
- Agency Approvals
- CE; RoHS; cUL; UL.
- Front Panel Rating
- IP56.
