Documents: 115T-AV

Bulletin D-2 Series 100 AV Catalog Page Red Gage Fluid - English Red Gage Fluid - French Red Gage Fluid - German Red Gage Fluid - Spanish More Info

115T-AV | Air velocity gage kit | .05-0-.25" w.c. | 400-2000 FPM velocity | 6" scale | Model 166T (36") Pitot tube. | Dwyer

Air velocity gage kit, .05-0-.25" w.c., 400-2000 FPM velocity, 6" scale, Model 166T (36") Pitot tube.

Brand: DwyerSKU: 115T-AV

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 115T-AV

Jump to: Overview & Specifications Reviews

Overview Details for 115T-AV

See catalog product page for full listing

Air velocity gage kit | .05-0-.25" w.c. | 400-2000 FPM velocity | 6" scale | Model 166T (36") Pitot tube.

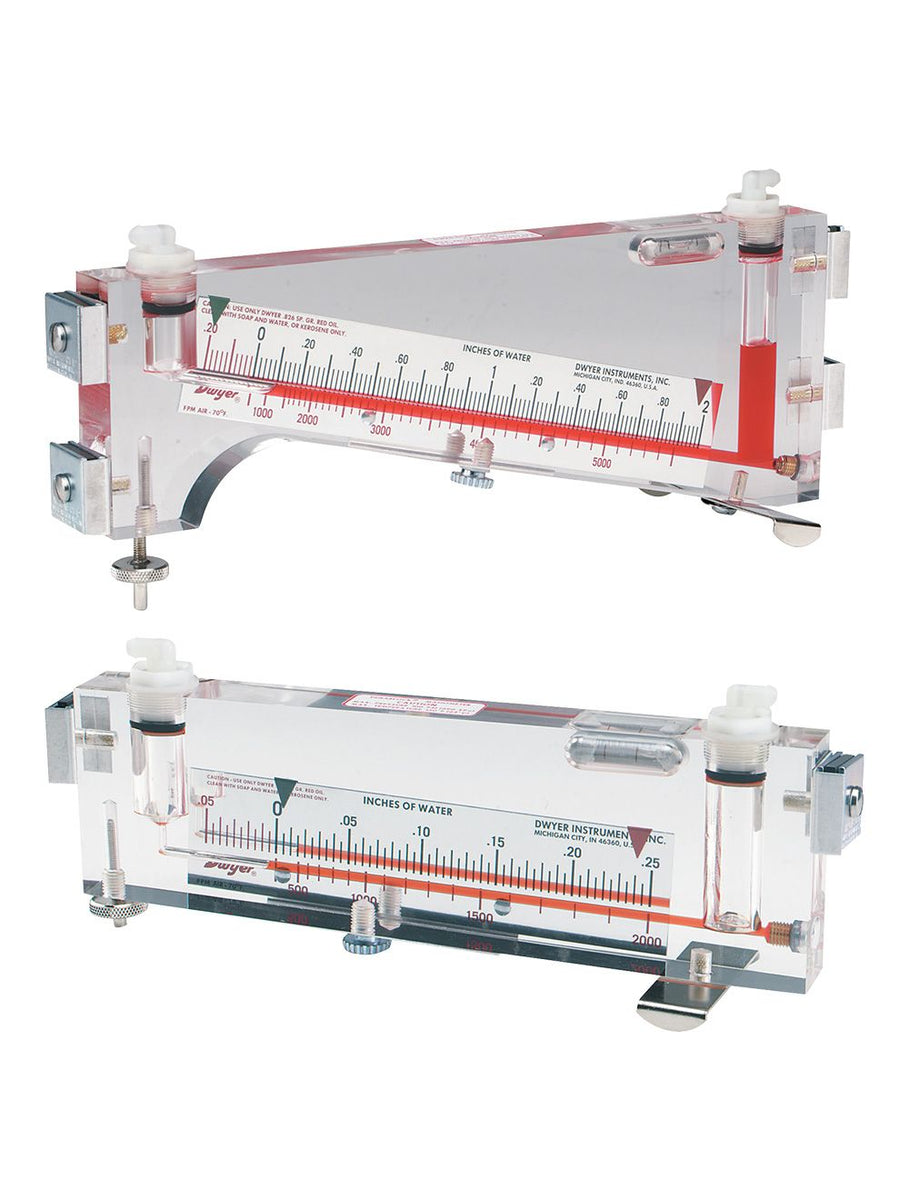

Series 100 AV Durablock® Air Velocity Gage Kit

Suitable for Total Pressures to 100 psig (6.89 bar), Temperatures to 150°F (65.6°C)

Designed to measure air velocity, static pressure, vacuum or differential pressure, where the additional range of the 400 Series gages is not required. Series 100 Gages offer superb accuracy combined with portability. The Dwyer® Durablock® precision machined solid acrylic plastic construction, the wells and inclined bore are machined to tolerances of ±.0002".

Complete Air Velocity Kits Include:
Dwyer® Inclined Manometer, stainless steel Pitot tube (12" with Models 102 AV & 115 AV), two 9' lengths of rubber tubing with connectors, additional red gage fluid, instruction card H-7, Bulletin H-11 and magnetic mounting clips, air velocity calculator slide rule and carrying case.

Click here, if you require a Material Safety Data Sheet for the Red Gage Fluid.

Plastic Body - A 1" thick solid acrylic block, virtually unbreakable. It isstable and free of the danger of distortion.
Drilled Bore - Permanently free of bends - never requires recalibration due to distortion.
Reflective Chrome Finish Scales - Easily eliminates parallax errors in reading. Adjustable, with thumbscrew locking for easy zeroing. (Model 125 AV uses screw plunger to adjust zero setting).
Red Gage Fluid - .826 specific gravity. Forms a well-shaped, easy-to-read meniscus - the result of high wetability.
Leveling Adjustment - Screw allows quick, accurate leveling. Integral ground glass bubble level provides ready reference.
