1BL007 | PL-45, 1/6 HP Cast Iron Booster Pump (230V) | Bell & Gossett

Brand: Bell & GossettSKU: 1BL007

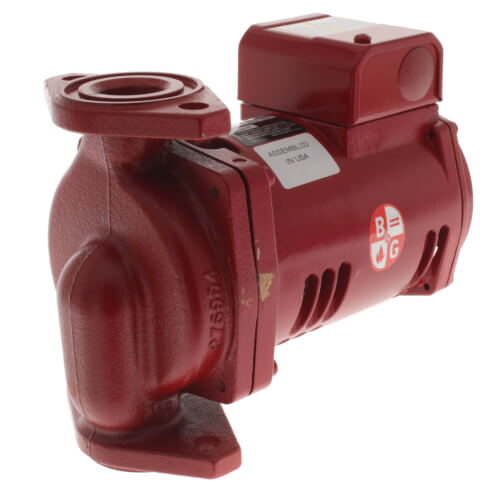

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1BL007

Jump to: Overview & Specifications Reviews

Overview Details for 1BL007

PL-45, 1/6 HP Cast Iron Booster Pump (230V)

Please Note: Flanges not included.

The Series PL close coupled booster pumps arespecifically designed for quiet operation in hydronic,radiant and geothermal heating and coolingsystems.

Features:

B&G's powerful, dry-motor design delivers exceptional performance
25% more efficient than competition
Precision-machined and balanced alloy steel rotor for superior performance. Series-PL
Solid "Stiff-Shaft" design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses.
XL-11 Precision-Crafted Bearing System
Permanently oil lubricated
Completely maintenance free
Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
Double sided stainless steel neck ring for optimum efficiency

Specifications

Item Number	1BL007
Brand	Bell & Gossett
Amperage	2.1
Application	Heating
Connection Size	1-1/2"
Connection Type	Flanged x Flanged
Flow Range (GPM)	0-40
Head Range (ft.)	0-40
Hertz	60
Horse Power	1/6
Material	Cast Iron
Max Flow (GPM)	40
Max Head (Ft)	40
Max Pressure (PSI)	150
Max Temp (F)	225°F
Phase	1
Pump Type	Cast Iron Pumps
Pump Type	Circulator Pumps
RPM	3300
Series	PL Series Cast Iron Booster Pumps
Type	Booster Pump
Type	Pump
Voltage	230v
