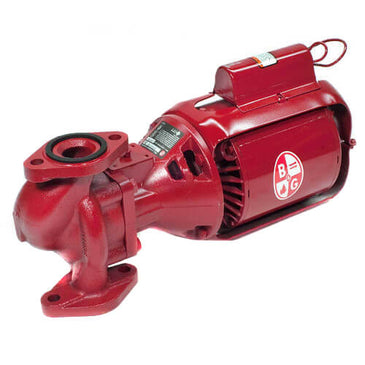

106190 | 1/12 HP, Series 100 BI Circulator Pump (115V) | Bell & Gossett
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 106190
Documents and manuals
Bell & Gossett 106190 Documents
Overview
Details for 106190
1/12 HP, Series 100 BI Circulator Pump (115V)
1/12 HP, Series 100 BI Circulator Pump (115V)The Bell & Gossett Series 100 BI Circulator Pump (106190) offers excellent performance and easy field service in residential and light commercial environments, such as hydronic heating and low-pressure boosting. It features an oil-lubricated motor plus a shaft and seal housing that provides easy field service and can easily be repaired or replaced. What’s more, this Bell & Gossett circulator pump features excellent hydraulic performance that runs quietly and requires minimal annual lubrication.
The Bell & Gossett 106189 features a precision ground pump shaft is oversized to provide large bearing surfaces and a hardened integral thrust collar minimizes end-thrust to ensure long seal and bearing life. The mechanical seal is designed to withstand the wide range of water temperatures, pressures, additives and dissolved solids common in hydronic systems.
Not for use in potable water systems. This pump may also be referred to by the Bell & Gossett model number 100NFI. UL, CSA listed.
Specifications
Item Number | 106190 |
Brand | Bell & Gossett |
Amperage | 1.75 |
Application | Heating |
Connection Size | 1-1/2" |
Connection Type | Flanged x Flanged |
Flow Range (GPM) | 0-33 |
Head Range (ft.) | 0-8 |
Hertz | 60 |
Horse Power | 1/12 |
HP | 1/12 |
Material | Cast Iron |
Max Flow (GPM) | 33 |
Max Head (Ft) | 8 |
Max Pressure (PSI) | 125 |
Max Temp (F) | 225°F |
Phase | 1 |
Pump Type | Cast Iron Pumps |
RPM | 1725 |
Series | 100 Series Cast Iron Booster Pumps |
SubType | Three Piece Cast Iron Booster Pumps |
Type | Pump |
Voltage | 115v |
