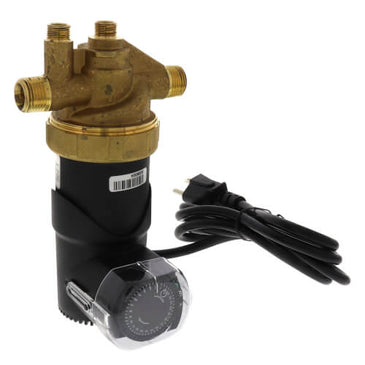

60A0B6001 | Autocirc Circulator w/ Built-In Fixed Thermostat & Timer, Lead Free Brass (1/2" NPT) | Bell & Gossett

Brand: Bell & GossettSKU: 60A0B6001

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 60A0B6001

Jump to: Overview & Specifications Reviews

Overview Details for 60A0B6001

Autocirc Circulator w/ Built-In Fixed Thermostat & Timer, Lead Free Brass (1/2" NPT)

Autocirc circulators are energy efficient using permanent magnet, ECM (electronically commutated motor) technology. The autocirc circulators are designed specifically for standard water heaters. These circulators are lead free and are assembled with a timer, cord and plug.

Features & Benefits:

Silent during operation
Requires only one pump and one installation for all fixtures on the hot water plumbing line
Does not require a return line
Saves money and thousands of gallons of water annually
Built in 24-hour timer which allows the selection of system operating periods to suit family usage
Built-in fixed thermostat or an optional, adjustable ON thermostat
Comes complete with a 6 ft. long power cord
Designed for potable water applications

Specifications

Item Number	60A0B6001
Brand	Bell & Gossett
Adjustable Speed	No
Adjustable Thermostat	No
Application	Domestic Hot Water
Connection Size	1/2"
Connection Type	NPT
Height (Inches)	8"
Hertz	60
Hose Connection	1/2"
Installation Type	Under Sink
Lead Free	Yes
Material	Brass
Max Pressure (PSI)	145
Max. Working Temp (F)	203°F
Phase	1
Plug	Yes
Power Consumption	14 Watts
Pump Type	Recirculating Pumps
Series	Ecocirc e3 Domestic Hot Water Pumps
Type	Circulator
Type	Dedicated
Type	Pump
Voltage	115v
Width (Inches)	4-1/2"
