Documents: 1BL068LF
1BL068LF | 2/5 HP, PL-55B Bronze Pump, Lead Free | Bell & Gossett

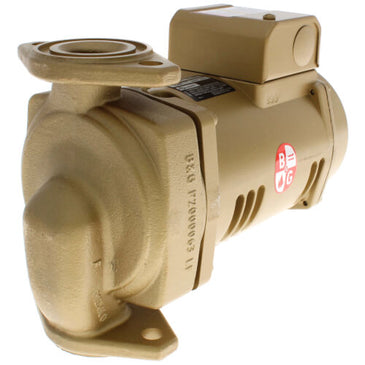

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1BL068LF
Overview Details for 1BL068LF
2/5 HP, PL-55B Bronze Pump, Lead Free
Note: Image depicts both a Bronze and Cast iron PumpSpecifications:
- Maximum working pressure: 150 psi (10.3 bar)
- Maximum operating temperature: 225°F (107°C)
Features:
- Powerful, dry-motor design deliversexceptional performance - 25% more efficientthan competition
- Precision-machined and balanced alloy steelrotor for superior performance
- Quick-connect wire nut leads and dual knockoutsmake for fast, sure hook-ups
- Solid "Stiff-Shaft" design is constructed ofhigh-strength alloy steel impervious to crackingcaused by thermal stresses
- XL-11 Precision-Crafted Bearing System ispermanently oil lubricated - completely maintenancefree and precisely positioned for long-life andisolated for quiet operation
- Advanced close-coupled design increases pumplife and efficiency, assures dependable seasonalstart-ups and can easily handle difficult waterconditions
- Tough, durable seal system features acarbon/silicon carbide seal on a stainlesssteel shaft sleeve for long life and rugged operation
- Double sided I-Seal design for optimum efficiency
Specifications
Item Number | 1BL068LF |
Brand | Bell & Gossett |
Connection Size | 3/4" |
Connection Type | Flanged x Flanged |
Family | CIRCULATOR PUMPS |
Flow Range (GPM) | 0-50 |
Head Range (ft.) | 0-52.5 |
Horse Power | 2/5 |
Lead Free | Yes |
Material | Bronze |
Max Flow (GPM) | 50 |
Max Head (Ft) | 52.5 |
Max Pressure (PSI) | 150 |
Max Temp (F) | 225°F |
RPM | 3250 |
SubType | Circulator Pumps |
Type | Bronze Pumps |
Type | Circulator |
Type | Pump |
Voltage | 115v |
