Documents: 60A0B1005

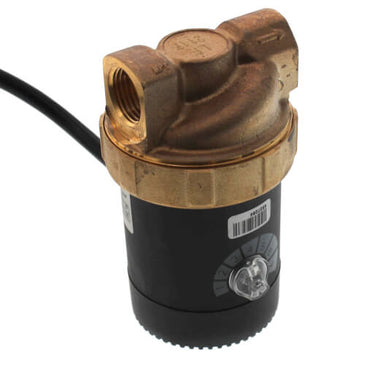

60A0B1005 | Ecocirc Circulator w/ Multi-Speed & Plug, Lead Free Brass (1/2" FPT) | Bell & Gossett
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 60A0B1005
Overview Details for 60A0B1005
Ecocirc Circulator w/ Multi-Speed & Plug, Lead Free Brass (1/2" FPT)
Ecocirc circulators are energy efficient circulators using permanent magnet ECM (electronically commutated motor) technology. The Ecocirc circulators are designed specifically for potable water applications. These circulators are lead free and available with a variety of options (temperature sensor, various body styles, assembled with electrical cord and plug, timer and more).Features & Benefits:
- Easy installation
- Models with a programmable timer and built-in thermostat are available to further reduce energy consumption
- Available with integrated check and ball valves for quick isolation during service
- Instant availability of hot water, even at the tap furthest from the hot water heater
- Conserves natural resources - reduced power consumption, CO2 emissions and wasted water
- Highly efficient ECM technology
- Long lasting, silent operation
- Resistant to scale build up
- No shaft, no seal
- Single bearing design
- Maintenance free without blockage
Specifications
Item Number | 60A0B1005 |
Brand | Bell & Gossett |
Adjustable Speed | Yes |
Adjustable Thermostat | No |
Application | Domestic Hot Water |
Connection Size | 1/2" |
Connection Type | FPT |
Hertz | 50 |
Installation Type | Under Sink |
Lead Free | Yes |
Material | Brass |
Max Pressure (PSI) | 150 |
Max. Working Temp (F) | 203°F |
Phase | 1 |
Plug | Yes |
Power Consumption | 5 to 28 Watts |
Pump Type | Recirculating Pumps |
Series | Ecocirc e3 Domestic Hot Water Pumps |
Type | Circulator |
Type | Dedicated |
Type | Pump |
Voltage | 115v |
