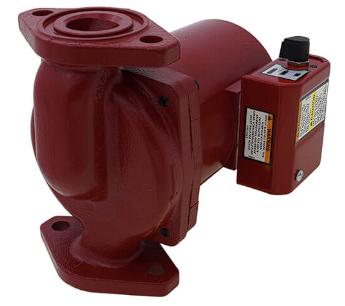

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 103402

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bell & Gossett 103402 Documents

Catalog PartS & Accessories

Overview

Details for 103402

3 Speed Wet Rotor Circulator Pump, 208/230V (Model NRF-36)

208/230Vac, Single Phase, 3300 RPM, 1.20 Full Load Amps, 270 Watts, Three Speed, Cast Iron Wet Rotor Circulator used with 3/4", 1", 1 1/4", or 1 1/2" Flanges (Model NRF-36)

Specifications

Item Number	103402
Brand	Bell & Gossett
Amperage	1.2
Application	Heating
Connection Size	1-1/2"
Connection Type	Flanged x Flanged
Flow Range (GPM)	0-36
Head Range (ft.)	0-34
Hertz	60
Material	Cast Iron
Max Flow (GPM)	36
Max Head (Ft)	34
Max Pressure (PSI)	150
Max Temp (F)	225°F
Phase	1
Pump Type	Cast Iron Pumps
Pump Type	Circulator Pumps
RPM	3300
Series	NRF Red Fox Series Cast Iron Pumps
Type	3-Speed Pump
Type	Pump
Voltage	208/230v
