105134 | 1 HP, PD38T BI Circulator Pump | Bell & Gossett

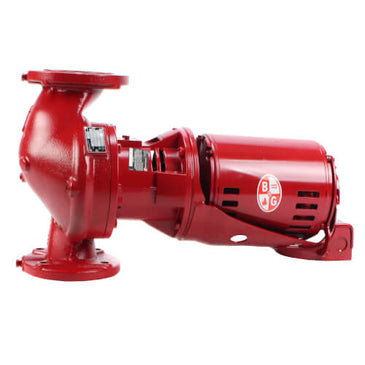

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 105134

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bell & Gossett 105134 Documents

Datasheet Catalog PartS & Accessories Installation Instructions

Overview

Details for 105134

1 HP, PD38T BI Circulator Pump

Note: Image is not an exact representation of item

Description
Bell & Gossett in-line three-piece booster pumps aredesigned for hydronic systems. Series 100 and HV areListed with Underwriter's Laboratories.

Operational Data

Maximum Working Pressure: 125 PSI (682 kPa)
Maximum Operating Temperature:
Standard Seal: 225°F (107°C) continuous
Special Seals: 250°F (121°C) continuous (consult local B&G Representative)
Maximum Motor RPM: 1750

Specifications

Item Number	105134
Brand	Bell & Gossett
Application	Heating
Connection Size	3"
Connection Type	Flanged x Flanged
Flow Range (GPM)	0-145
Head Range (ft.)	13-31
Hertz	60
Horse Power	1
HP	1
Max Flow (GPM)	145
Max Head (Ft)	31
Max Pressure (PSI)	125
Max Temp (F)	225°F
Min Head (Ft)	13
Phase	3
Pump Type	Cast Iron Pumps
RPM	1725
Series	PD Series Cast Iron Booster Pumps
SubType	Three Piece Cast Iron Booster Pumps
Type	Pump
Voltage	208/230/460v
