105101 | 3/4 HP, PD37T Circulator Pump | Bell & Gossett

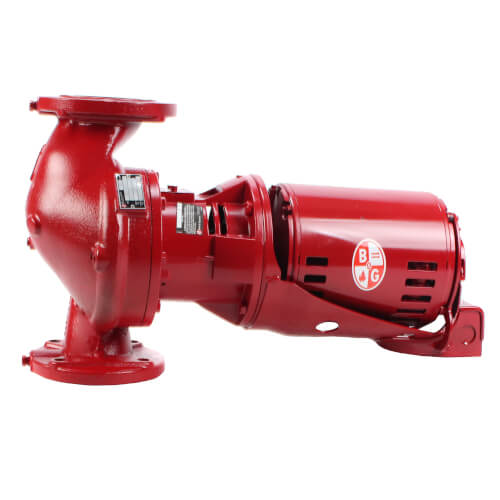

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 105101
Documents and manuals
Bell & Gossett 105101 Documents
Overview
Details for 105101
3/4 HP, PD37T Circulator Pump
Specifications- Type: In-Line Oil Lubricated Circulator Pump
- Flange Size: 3.0 In.
- Horsepower: 3/4
- Voltage: 208/230/460
- Phase: 3
- Housing Material: Cast Iron
- Impeller Material: Brass
- Frequency: 60 Hz
- Motor Type: ODP
- RPM: 1750
- Maximum Working Pressure: 125 psi
- Flange Width: 12 in
- Length: 20 ¼ in
Specifications
Item Number | 105101 |
Brand | Bell & Gossett |
Amperage | 2.45-2.4/1.2 |
Application | Heating |
Connection Size | 3" |
Connection Type | Flanged x Flanged |
Family | CIRCULATOR PUMPS |
Flow Range (GPM) | 0-135 |
Head Range (ft.) | 11-30 |
Hertz | 60 |
Horse Power | 3/4 |
HP | 3/4 |
Material | Cast Iron |
Max Flow (GPM) | 135 |
Max Head (Ft) | 30 |
Max Pressure (PSI) | 125 |
Max Temp (F) | 225°F |
Min Head (Ft) | 11 |
Phase | 3 |
Pump Type | Cast Iron Pumps |
RPM | 1750 |
Series | PD Series Cast Iron Booster Pumps |
SubType | Three Piece Cast Iron Booster Pumps |
Type | Pump |
Voltage | 208/230/460v |
