Documents: 102233LF

Datasheet Catalog PartS & Accessories Installation Instructions

102233LF | 1/6 HP, 2AB Series HV Bronze Three-Piece Circulator Pump w/ 2" Flange, Overload Protection (115V, 1725 RPM) | Bell & Gossett

Brand: Bell & GossettSKU: 102233LF

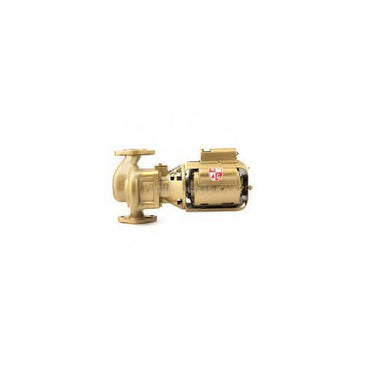

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 102233LF

Jump to: Overview & Specifications Reviews

Overview Details for 102233LF

1/6 HP, 2AB Series HV Bronze Three-Piece Circulator Pump w/ 2" Flange, Overload Protection (115V, 1725 RPM)

1/6 HP, 115Vac with Built-In Overload Protection, Single Phase, Lead Free All Bronze Three-Piece Oil Lubricated Circulator Pump used with 2" Flanges (Model 2 AB)

Specifications

Item Number	102233LF
Brand	Bell & Gossett
Amperage	1.9
Application	Heating
Connection Size	2"
Flow Rate (GPM)	40
Head Range (ft.)	0-12
Hertz	60
Horse Power	1/6
HP	1/6
Material	Bronze
Max Head (Ft)	12
Max Pressure (PSI)	125
Max Temp (F)	225°F
Phase	1
Pump Type	Bronze Pumps
RPM	1725
Series	HV Series Bronze Booster Pumps
SubType	Three Piece Bronze Booster Pumps
Type	Pump
Voltage	115v
