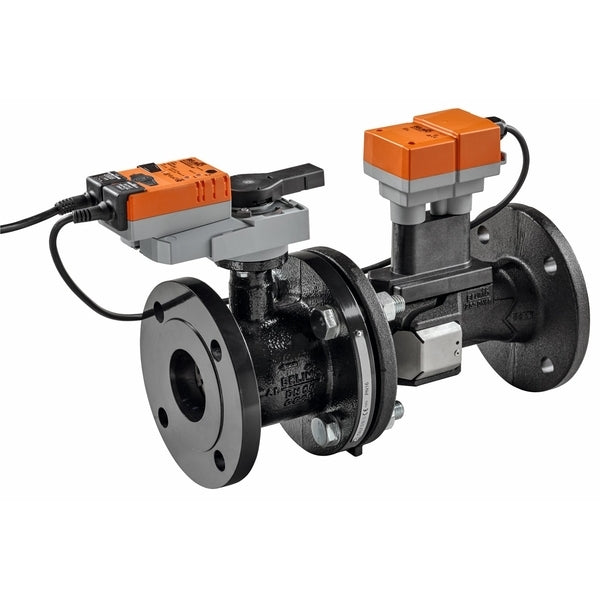

P6500SU-495-250+GKRX24-EP2 | Electronic Pressure Independent Valve (EPIV), 5", 2-way, ANSI Class 250, 495 | Configurable Valve Actuator, Electronic fail-safe, AC/DC 24V, 2-10V | Belimo
Configurable Electr. 2-way PI-CCV EPIV fail-safe, AC/DC 24 V, DN 5"[125], flange, ANSI Class 250, GPM 495|Electronic Pressure Independent Valve (EPIV), 5", 2-way, ANSI Class 250, GPM 495|Configurable Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to P6500SU-495-250+GKRX24-EP2
Documents and manuals
Belimo P6500SU-495-250+GKRX24-EP2 Documents
Overview
Details for P6500SU-495-250+GKRX24-EP2
Electronic Pressure Independent Valve (EPIV), 5", 2-way, ANSI Class 250, 495 | Configurable Valve Actuator, Electronic fail-safe, AC/DC 24V, 2-10V
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 250
- End Fitting
- Flange
- Flow
- 495
- Fluid
- Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
- Pattern
- 2-way
- PI-Technology
- Electronic
- Pressure Independent
- YES
- Sensor Technology
- Ultrasonic with glycol and temperature compensation
- Trim
- Stainless steel
- Valve Size
- 5" [125]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Running)
- 11 W
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 90 s
- Torque
- 360 in-lb [40 Nm]
- Voltage AC/DC
- AC/DC 24 V
