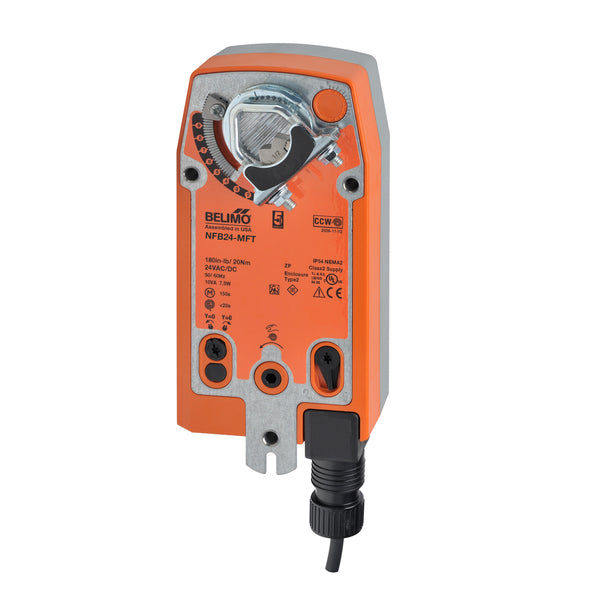

NFB24-MFT | Damper Actuator | 90 in-lb | Spg Rtn | 24V | MFT | Belimo

Damper Actuator, 90 in-lb [10 Nm], Spring return, AC/DC 24 V, 2...10 V, MFT/programmable

Belimo | NFB24-MFT
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NFB24-MFT
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo NFB24-MFT Documents

Datasheet Installation Instructions More Info

Overview

Details for NFB24-MFT

Damper Actuator | 90 in-lb | Spg Rtn | 24V | MFT

For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. A feedback signal is provided for position indication.

Specifications

Actuator Type
Spring return
Angle of Rotation
95
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
6.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
150 s / 90B0
Running Time range (Motor)
40...150 s
Safety Function
YES
Torque
90 in-lb [10 Nm]
Voltage AC/DC
AC/DC 24 V
