ZS-260 | Explosion proof housing. | Belimo

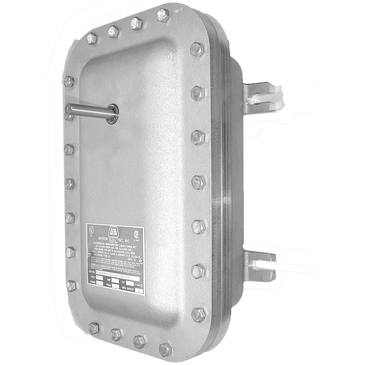

Belimo | ZS-260
The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for ZS-260

Explosion proof housing.

Application

The ZS-260 explosion-proof housing may be used with the GM, AM, AF, NF, LF, FSAF, FSNF, FSLF series actuators. This housing is not designed for direct coupling. UL and CSA; Class I, Division 1&2, Groups B, C, D, (NEMA 7), Class II, Division 1&2, Groups E, F and G, (NEMA 9), Class III, Hazardous (classified) Locations, outdoor application NEMA 4

Operation

The ZS-260 enclosure is designed so that the required actuator may be easily field mounted into the enclosure. The actuator is fastened on to the internal portion of the operating shaft and secured at the end with an anti-rotation strap. A crank-arm, such as the KH8, is mounted to the external portion of the operating shaft for connection to connection to the damper linkage. ZG-109 right angle, and ZG-110 standoff mounting brackets may be used (see back). The ZS-260 is designed so that the operating shaft can be mounted on either the front or rear side of the housing.

Accessories

KH8 Universal crankarm
KG8 Universal ball joint
KG10 Universal ball joint
ZG-109 Right angle mounting bracket
ZG-110 Stand-off mounting bracket

Specifications

Item Number ZS-260
Brand Belimo
Collection Belimo AF Series
Collection Belimo AM Series
Collection Belimo FS Series
Collection Belimo GM Series
Collection Belimo LF Series
Collection Belimo NF Series
Collection Damper Actuator Accessories

Documents and manuals

Belimo ZS-260 Documents
