LHX24-SR-200 | Damper Actuator | 34 lbf | Non-Spg Rtn | 24V | Modulating | Belimo

Configurable Damper Actuator, 35 lbf [150 N], Non fail-safe, AC/DC 24 V, 2...10 V, cable, modulating

Belimo | LHX24-SR-200

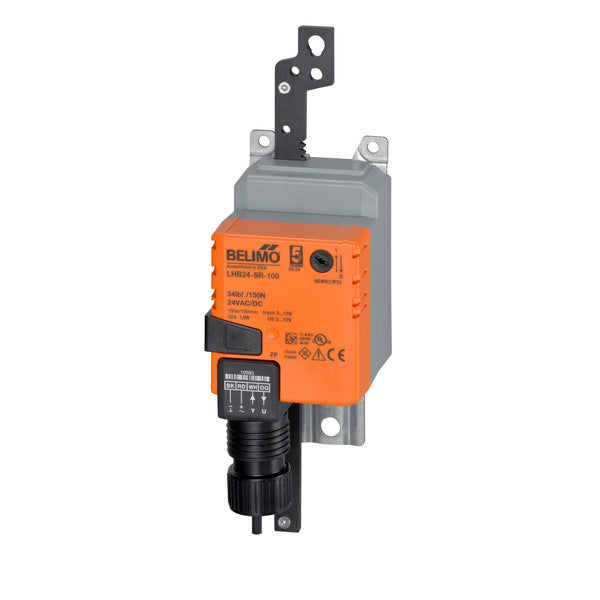

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LHX24-SR-200
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo LHX24-SR-200 Documents

Datasheet Installation Instructions More Info

Overview

Details for LHX24-SR-200

Damper Actuator | 34 lbf | Non-Spg Rtn | 24V | Modulating

Operation Typical specification Product features For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator operates in response to a 2...10 V, or with the addition of a 500 Ω resistor, a 4...20 mA control input from an electronic controller or positioner. A 2...10 V feedback signal is provided for position indication or master-slave applications.

Specifications

Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Force
150 N [35 lbf]
Manual Override
External push button
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
1.5 W
Running Time (Motor)
150 s / 100 mm
Safety Function
NO
Stroke
8" [200 mm]
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
$507.60 each
Belimo ZK1-GEN Cable for use with ZTH US to connect to diagnostic/programming socket. | Blackhawk Supply
ZK1-GEN | Cable for use with ZTH US to connect to diagnostic/programming socket. | Belimo
$77.40 each
Belimo ZG-X40 120 to 24 VAC | 40 VA transformer. | Blackhawk Supply
ZG-X40 | 120 to 24 VAC | 40 VA transformer. | Belimo
$67.05 each
Belimo ZK2-GEN Cable for use with ZTH US to connect to actuators not equipped with diagnostic/programming socket. | Blackhawk Supply
ZK2-GEN | Cable for use with ZTH US to connect to actuators not equipped with diagnostic/programming socket. | Belimo
$36.00 each
Belimo PS-100 Actuator power supply and control simulator. | Blackhawk Supply
PS-100 | Actuator power supply and control simulator. | Belimo
$1,026.00 each
Belimo SGA24 Positioner for remote control of proportional actuators (surface mount). | Blackhawk Supply
SGA24 | Positioner for remote control of proportional actuators (surface mount). | Belimo
$111.60 each
