SGA24 | Positioner for remote control of proportional actuators (surface mount). | Belimo

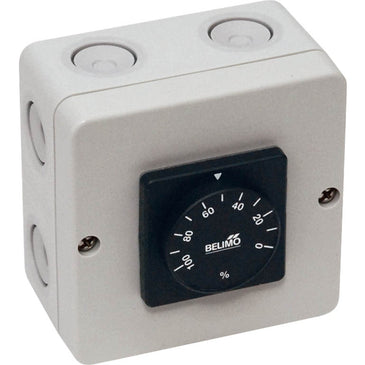

Positioner for wall mounting

Belimo | SGA24
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SGA24

Documents and manuals

Belimo SGA24 Documents

Overview

Details for SGA24

Positioner for remote control of proportional actuators (surface mount).

Positioner for remote control of proportional actuators (surface mount).

Application

These positioners are intended for the remote control of modulating actuators or for use as a minimum positioner (providing a minimum limit for the output signal from a modulating controller). The control range is 0 to 100% of the angle of rotation of the actuator.

Positioner SGA24 is for surface mounting with a NEMA 2 housing included. Positioner SGF24 is for flush mounting.

Operation

The positioner receives its supply voltage through terminals 1 and 2. A rotary knob is turned, producing a proportional control signal (Y) at the output (terminal 3) of either 0.5 to 10 VDC or 2 to 10 VDC and therefore a proportional change in the position of the actuator between 0 and 100%. When used for a minimum limit, the positioner works as a higher of 2 signal selector. This function allows only the signal from the controller or positioner, whichever is greater, to go to the actuator.

Function

The changeover from 2 to10 V to 0 to 10 V is selected by means of a slide switch on the printed circuit board.

The angle of rotation of the knob can be limited mechanically, by moving the adjustable stops under the knob


Specifications

Degree of Protection
IP40
Electrical Connection
terminals
Power Consumption (Running)
0.3 W
Voltage AC/DC
AC/DC 24 V
