LFC24-3-R US | Damper Actuator | 35 in-lb | Spg Rtn | 24V | On/Off/Floating Point | Belimo
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: LFC24-3-R US

Web Price:

$310.50
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

Email

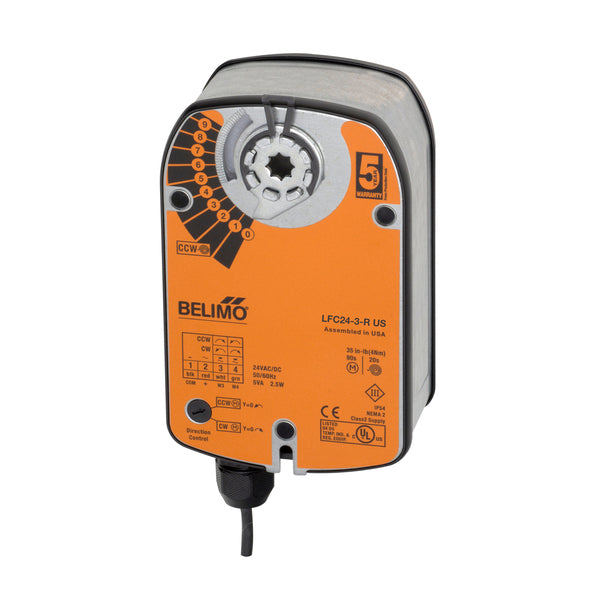

LFC24-3-R US | Damper Actuator | 35 in-lb | Spg Rtn | 24V | On/Off/Floating Point | Belimo

Damper Actuator, 35 in-lb [4 Nm], Spring return, AC/DC 24 V, On/Off, Floating point

Belimo | LFC24-3-R US
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LFC24-3-R US
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo LFC24-3-R US Documents

Datasheet Installation Instructions More Info

Overview

Details for LFC24-3-R US

Damper Actuator | 35 in-lb | Spg Rtn | 24V | On/Off/Floating Point

Specifications

Actuator Type
Spring return
Angle of Rotation
95
Control Type
Floating/3-point
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
cable
Power Consumption (Holding)
1 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<25 s
Running Time (Motor)
90 s / 90B0
Safety Function
YES
Torque
35 in-lb [4 Nm]
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
$507.60 each
Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply
ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo
$15.75 each
Belimo ZG-LMSA-1/2-5 Shaft extension for 1/2" diameter shafts (5" L). | Blackhawk Supply
ZG-LMSA-1/2-5 | Shaft extension for 1/2" diameter shafts (5" L). | Belimo
$51.75 each
Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Blackhawk Supply
KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo
$23.25 each
Belimo KH8 Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Blackhawk Supply
KH8 | Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Belimo
$15.75 each
Belimo KG6 Ball joint for 5/16" diameter rod | zinc plated. | Blackhawk Supply
KG6 | Ball joint for 5/16" diameter rod | zinc plated. | Belimo
$20.55 each
