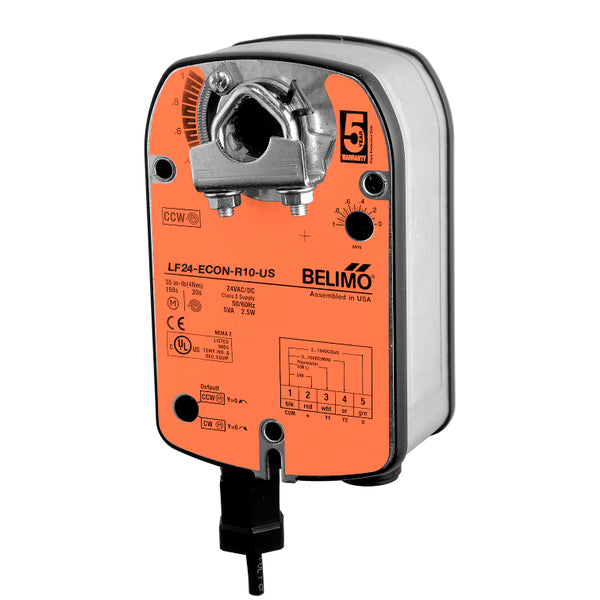

LF24-ECON-R10 US | Damper Actuator | 35 in-lb | Spg Rtn | 24V | Modulating | Belimo
Damper Actuator, 35 in-lb [4 Nm], Spring return, AC/DC 24 V, 10 kΩ NTC, modulating
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LF24-ECON-R10 US
Documents and manuals
Belimo LF24-ECON-R10 US Documents
Overview
Details for LF24-ECON-R10 US
Damper Actuator | 35 in-lb | Spg Rtn | 24V | Modulating
For fail-safe, modulating control of mixed air setpoint on economizer dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft from 3/8" up to 1/2" in diameter by means of its universal clamp, 1/2" shaft centered at delivery. For shafts up to 3/4" use K6-1 accessory. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to 3 kΩ thermistor, which allows the LF24-ECON.. to retrofit or replace Honeywell® M7415 actuators. A 2...10 V feedback signal is provided for position indication.Specifications
- Actuator Type
- Spring return
- Angle of Rotation
- 95
- Control Type
- Modulating
- Degree of Protection
- IP54 NEMA 2
- Direction of Rotation (Fail-Safe)
- Reversible with cw/ccw mounting
- Electrical Connection
- cable
- Power Consumption (Holding)
- 1 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Fail-safe)
- <25 s
- Running Time (Motor)
- 95 s / 90B0
- Safety Function
- YES
- Torque
- 35 in-lb [4 Nm]
- Voltage AC/DC
- AC/DC 24 V
