GMX24-MFT-T | Configurable | Damper Actuator | 360 in-lbs [40 Nm] | Non fail-safe | AC/DC 24V | DC2-10V | terminals | Belimo
Configurable Damper Actuator, 360 in-lb [40 Nm], Non fail-safe, AC/DC 24 V, NEMA 1, terminals, MFT/programmable

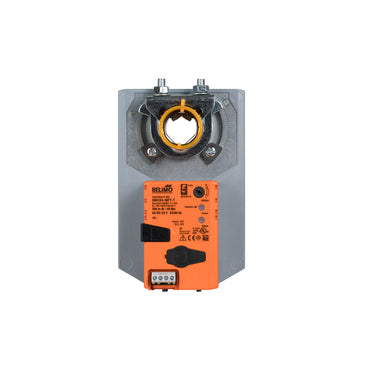

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GMX24-MFT-T
Documents and manuals
Belimo GMX24-MFT-T Documents
Overview
Details for GMX24-MFT-T
Configurable | Damper Actuator | 360 in-lbs [40 Nm] | Non fail-safe | AC/DC 24V | DC2-10V | terminals
For on/off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- MFT/Programmable
- Degree of Protection
- IP20 NEMA 1 UL Enclosure Type 1
- Electrical Connection
- terminals
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 4.5 W
- Running Time (Motor)
- 150 s / 90B0
- Running Time range (Motor)
- 75...300 s
- Safety Function
- NO
- Torque
- 360 in-lb [40 Nm]
- Voltage AC/DC
- AC/DC 24 V
