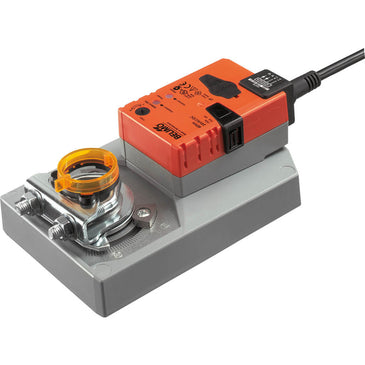

GM24A-MOD | Valve Actuator | Non-Spring | 24V | Modulating | Belimo

Rotary Actuator, 360 in-lb [40 Nm], AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, 150 s, IP54

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GM24A-MOD

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Belimo GM24A-MOD Documents

Datasheet Installation Instructions More Info

Overview

Details for GM24A-MOD

Valve Actuator | Non-Spring | 24V | Modulating

Specifications

Actuator Type

Non fail-safe

Angle of Rotation

Control Type

BACnet MS/TP
Modbus RTU
MP-Bus
DC 2...10 V
DC 0.5...10 V
Hybrid (communicative/analog)

Degree of Protection

IP54

Electrical Connection

cable

Manual Override

With push-button can be locked

Mechanical Interface

Universal shaft clamp 12...26.7 mm

Power Consumption (Holding)

1.6 W

Power Consumption (Running)

3.5 W

Running Time (Motor)

150 s / 90B0

Running Time range (Motor)

75...290 s

Torque

360 in-lb [40 Nm]

Voltage AC/DC

AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply

ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo

Belimo S2A Auxiliary switch | 2x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Blackhawk Supply

S2A | Auxiliary switch | 2x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Belimo

Belimo S1A Auxiliary switch | 1x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Blackhawk Supply

S1A | Auxiliary switch | 1x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Belimo

Belimo ZS-100 Weather shield - galvaneal (13" L x 8" W x 6" D). | Blackhawk Supply

ZS-100 | Weather shield - galvaneal (13" L x 8" W x 6" D). | Belimo

Belimo ZS-150 Weather shield - polycarbonate with foam seal (16" L x 8-3/8" W x 4" D). | Blackhawk Supply

ZS-150 | Weather shield - polycarbonate with foam seal (16" L x 8-3/8" W x 4" D). | Belimo

Belimo ZS-260 Explosion proof housing. | Blackhawk Supply

ZS-260 | Explosion proof housing. | Belimo
