F665-150SHP+GKX24-MFT-X1 | Butterfly Valve | 2.5" | 2 Way | 146Cv | w/ Electronic Fail-Safe | 24V | MFT | Belimo
Butterfly Valve (BFV), 2 1/2", 2-way, ANSI Class 150, Cv 146 |Configurable Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

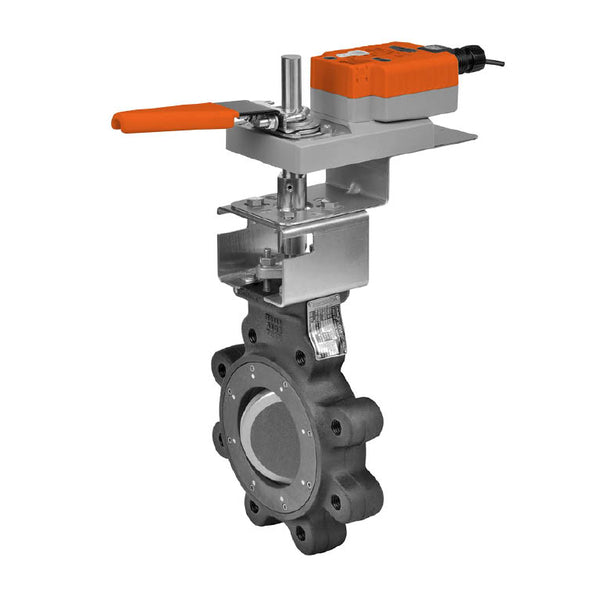

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F665-150SHP+GKX24-MFT-X1
Documents and manuals
Belimo F665-150SHP+GKX24-MFT-X1 Documents
Overview
Details for F665-150SHP+GKX24-MFT-X1
Butterfly Valve | 2.5" | 2 Way | 146Cv | w/ Electronic Fail-Safe | 24V | MFT
These valves are designed to meet the needs of HVAC and Commercial applications requiring positive shut-off for liquids at higher pressures and temperatures. Typical applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control, bypass and process control applications. The large Cv values provide for an economical control valve solution for larger fl ow applications.Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 150
- Controllable Flow Range
- Quarter turn mechanically limited
- Cv
- 146
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 2.5" [65]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 12 W
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
