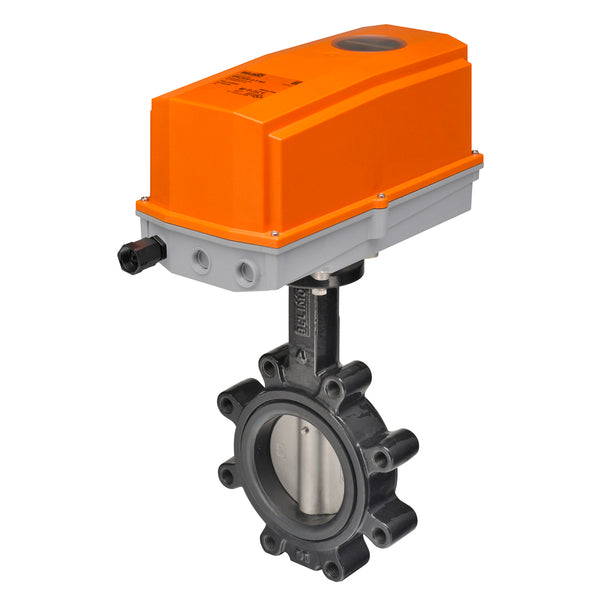

F650HD+AFRXUP N4 | Butterfly Valve | 2" | 2 Way | 115Cv | w/ Spring Return | 24-240V | On/Off | NEMA 4 | Belimo
Butterfly Valve (BFV), 2", 2-way, ANSI Class Consistent with 125, Cv 115 |Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off, NEMA 4X
Documents and manuals
Belimo F650HD+AFRXUP N4 Documents
Overview
Details for F650HD+AFRXUP N4
Butterfly Valve | 2" | 2 Way | 115Cv | w/ Spring Return | 24-240V | On/Off | NEMA 4
Product Features
200 psi (2” to 12”) and 150 psi (14” to 24”) 0% leakage, Long stem design allows for 2” insulation, Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, Ready for installation.
Application
Designed for use in ANSI flanged piping systems.Designed for use in ANSI flanged piping systems to meet the needs of bi-directional high flow HVAC hydronic applications requiring 0% leakage. Used for isolation (shut-off) service or throttling service within a range of 0-60 degrees rotation. Typical applications include chiller and boiler isolation, primary bypass flow control , cooling tower isolation, large air handler coil control, and process control heat exchanger applications.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 115
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 2" [50]
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- On/Off
- Degree of Protection
- IP66 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3.5 W
- Power Consumption (Running)
- 7 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
