F665HD+ARX24-MFT | Butterfly Valve | 2.5" | 2 Way | 196 Cv | w/ Non-Spring | 24V | MFT | Belimo

Butterfly Valve (BFV), 2 1/2", 2-way, ANSI Class Consistent with 125, Cv 196 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Belimo | F665HD+ARX24-MFT

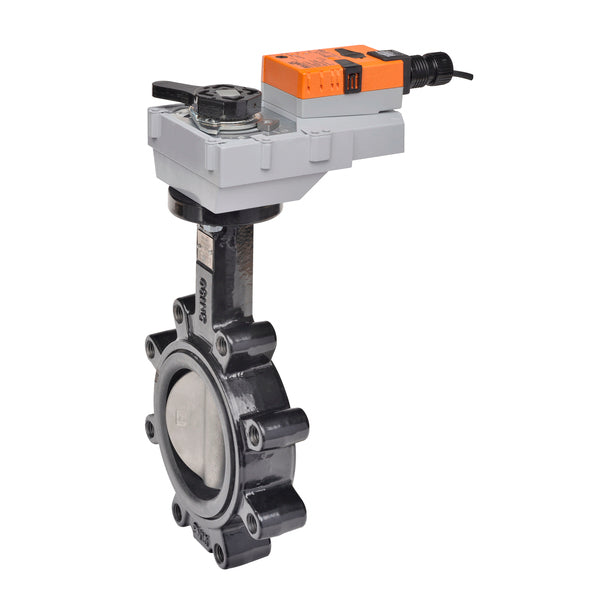

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F665HD+ARX24-MFT

Documents and manuals

Belimo F665HD+ARX24-MFT Documents

Overview

Details for F665HD+ARX24-MFT

Butterfly Valve | 2.5" | 2 Way | 196 Cv | w/ Non-Spring | 24V | MFT

Application

Valve is designed for use in ANSI flanged piping systems to meet the needs of bi-directional high flow HVAC hydronic applications with 0% leakage. Typical applications include cooling tower bypass, primary flow change-over systems, and large air handler coil control.

Jobsite Note

Valve assembly should be stored in a weather protected area prior to installation. Reference the butterfly valve installation instruction for additional information


Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
Consistent with 125
Controllable Flow Range
90B0 rotation
Cv
196
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Valve Size
2.5" [65]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.3 W
Power Consumption (Running)
3.5 W
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
