F650HD+GRCX24-3-T N4 | Butterfly Valve | 2" | 2 Way | 115Cv | w/ Non-Spring | 24V | Floating | NEMA 4 | Belimo
Butterfly Valve (BFV), 2", 2-way, ANSI Class Consistent with 125, Cv 115 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, NEMA 4X, terminals

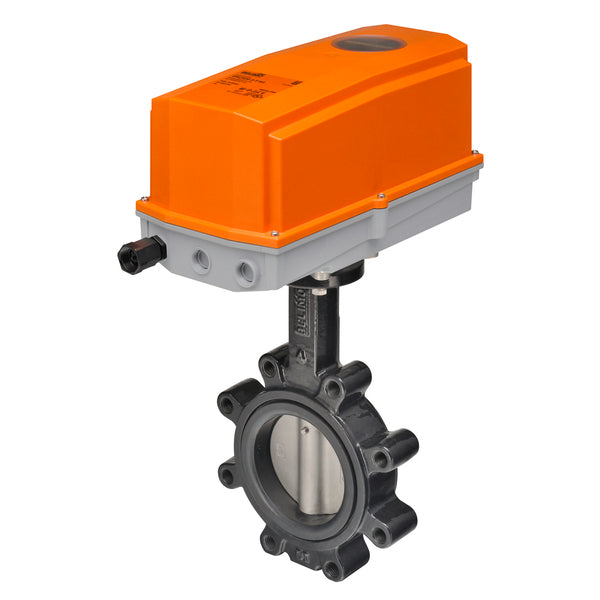

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F650HD+GRCX24-3-T N4
Documents and manuals
Belimo F650HD+GRCX24-3-T N4 Documents
Overview
Details for F650HD+GRCX24-3-T N4
Butterfly Valve | 2" | 2 Way | 115Cv | w/ Non-Spring | 24V | Floating | NEMA 4
Application
These valves are designed to meet the needs of HVAC and commercial applications requiring 0% leakage for liquids. Typical applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control, bypass and process control applications. The large Cv values provide for an economical control valve solution for larger flow applications. Designed for use in ANSI flanged piping systems.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 115
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 2" [50]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- Under cover
- Power Consumption (Holding)
- 2.5 W
- Power Consumption (Running)
- 8 W
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
