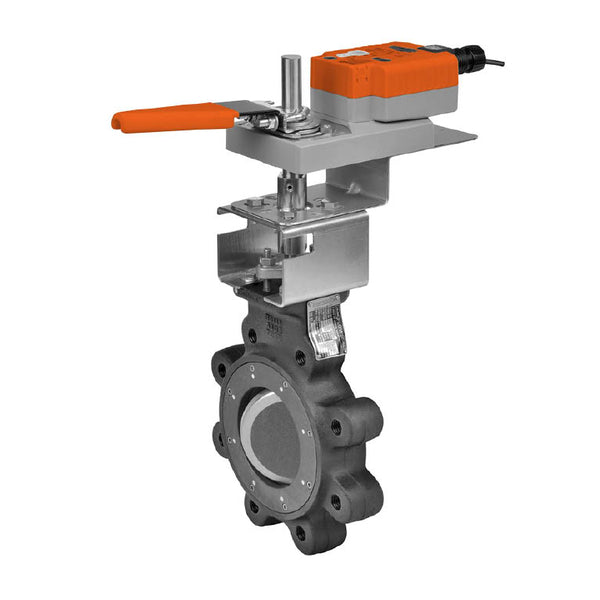

F650-300SHP+GMB24-3-X1 | Butterfly Valve | 2" | 2 Way | 100Cv | w/ Non-Spring | 24V | Floating | Belimo
Butterfly Valve (BFV), 2", 2-way, ANSI Class 300, Cv 102 |Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F650-300SHP+GMB24-3-X1
Documents and manuals
Belimo F650-300SHP+GMB24-3-X1 Documents
Overview
Details for F650-300SHP+GMB24-3-X1
Butterfly Valve | 2" | 2 Way | 100Cv | w/ Non-Spring | 24V | Floating
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 300
- Controllable Flow Range
- Quarter turn mechanically limited
- Cv
- 102
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 2" [50]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 4 W
- Running Time (Motor)
- 150 s / 90B0
- Torque
- 40 Nm
- Voltage AC/DC
- AC/DC 24 V
