F6100-150SHP+GKX24-MFT-X1 | Butterfly Valve | 4" | 2 Way | 451Cv | w/ Electronic Fail-Safe | 24V | MFT | Belimo
Butterfly Valve (BFV), 4", 2-way, ANSI Class 150, Cv 451 |Configurable Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

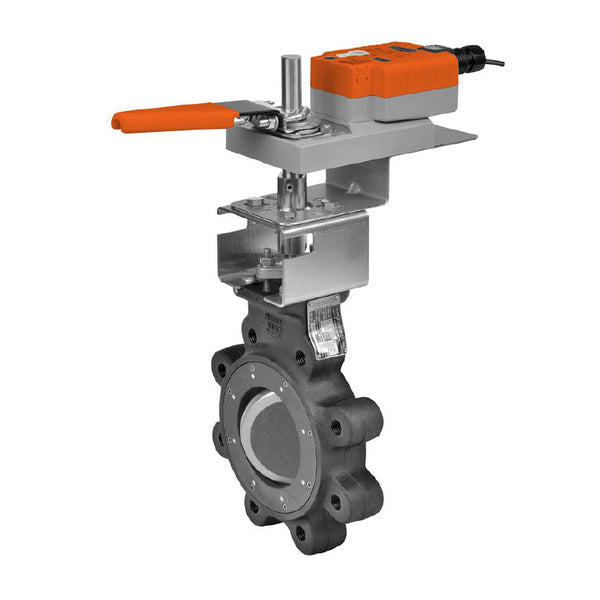

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6100-150SHP+GKX24-MFT-X1
Documents and manuals
Belimo F6100-150SHP+GKX24-MFT-X1 Documents
Overview
Details for F6100-150SHP+GKX24-MFT-X1
Butterfly Valve | 4" | 2 Way | 451Cv | w/ Electronic Fail-Safe | 24V | MFT
- Bubble tight shut-off to ANSI Class 150 Standards
- Long stem design allows for 2” insulation minimum
- Valve Face-to-face dimensions comply with API 609 & MSS-SP-68
- Designed to be installed between ASME/ANSI B16.5 Flanges
- Completely assembled and tested, ready for installation
Application
These valves are designed to meet the needs of HVAC and Commercial applications requiring positive shut-off for liquids at higher pressures and temperatures. Typical applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control, bypass and process control applications. The large Cv values provide for an economical control valve solution for larger fl ow applications.
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 150
- Controllable Flow Range
- Quarter turn mechanically limited
- Cv
- 451
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 4" [100]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 12 W
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
