F6100-150SHP+2*AFX24-MFT-S-X1 | Butterfly Valve | 4" | 2 Way | 451Cv | w/ Spring Return | 24V | MFT | SW | Belimo

Butterfly Valve (BFV), 4", 2-way, ANSI Class 150, Cv 451 |Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 2 x SPDT, MFT/programmable

Belimo | F6100-150SHP+2*AFX24-MFT-S-X1

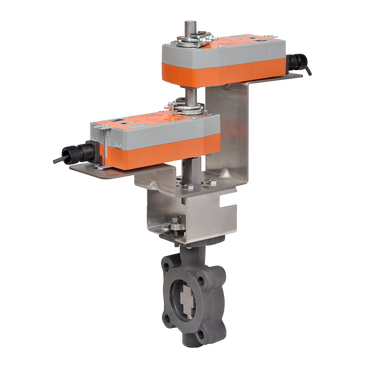

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6100-150SHP+2*AFX24-MFT-S-X1
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo F6100-150SHP+2*AFX24-MFT-S-X1 Documents

Datasheet Installation Instructions More Info

Overview

Details for F6100-150SHP+2*AFX24-MFT-S-X1

Butterfly Valve | 4" | 2 Way | 451Cv | w/ Spring Return | 24V | MFT | SW

Specifications

Valve specifications
Angle of Rotation
95
ANSI Class
150
Controllable Flow Range
Quarter turn mechanically limited
Cv
451
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Valve Size
4" [100]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
2 x SPDT
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
7.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
