EV500SU-495+GRX24-EV | Energy Valve (EV), 5", 2-way, ANSI Class 125 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V | Belimo

Configurable Electr. 2-way PI-CCV Belimo Energy Valve™, AC/DC 24 V, BACnet IP, BACnet MS/TP, Modbus RTU, Modbus TCP, MP-Bus, DN 5"[125], flange, ANSI Class 125|Energy Valve (EV), 5", 2-way, ANSI Class 125|Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, modulating

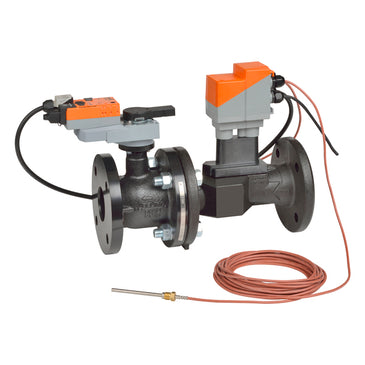

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to EV500SU-495+GRX24-EV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Belimo EV500SU-495+GRX24-EV Documents

Datasheet Installation Instructions More Info

Overview

Details for EV500SU-495+GRX24-EV

Energy Valve (EV), 5", 2-way, ANSI Class 125 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V

Specifications

Valve specifications
Angle of Rotation: 90
ANSI Class: 125
End Fitting: Flange
Flow: 495
Fluid: Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
Pattern: 2-way
PI-Technology: Electronic
Pressure Independent: YES
Sensor Technology: Ultrasonic with glycol and temperature compensation
Trim: Stainless steel
Valve Size: 5" [125]
Actuator specifications
Actuator Type: Non fail-safe
Control Type: DC 2...10 V
Degree of Protection: IP54 NEMA 1 UL Enclosure Type 1
Electrical Connection: cable
Manual Override: External push button
Power Consumption (Running): 8 W
Running Time (Motor): 90 s
Voltage AC/DC: AC/DC 24 V
