EFX120-S | Damper Actuator | 270 in-lb | Spg Rtn | 100 to 240V | On/Off | Belimo

Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100...240 V / DC 100...125 V, On/Off, 2 x SPDT

Belimo | EFX120-S

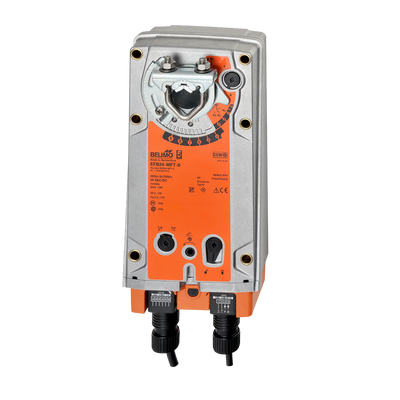

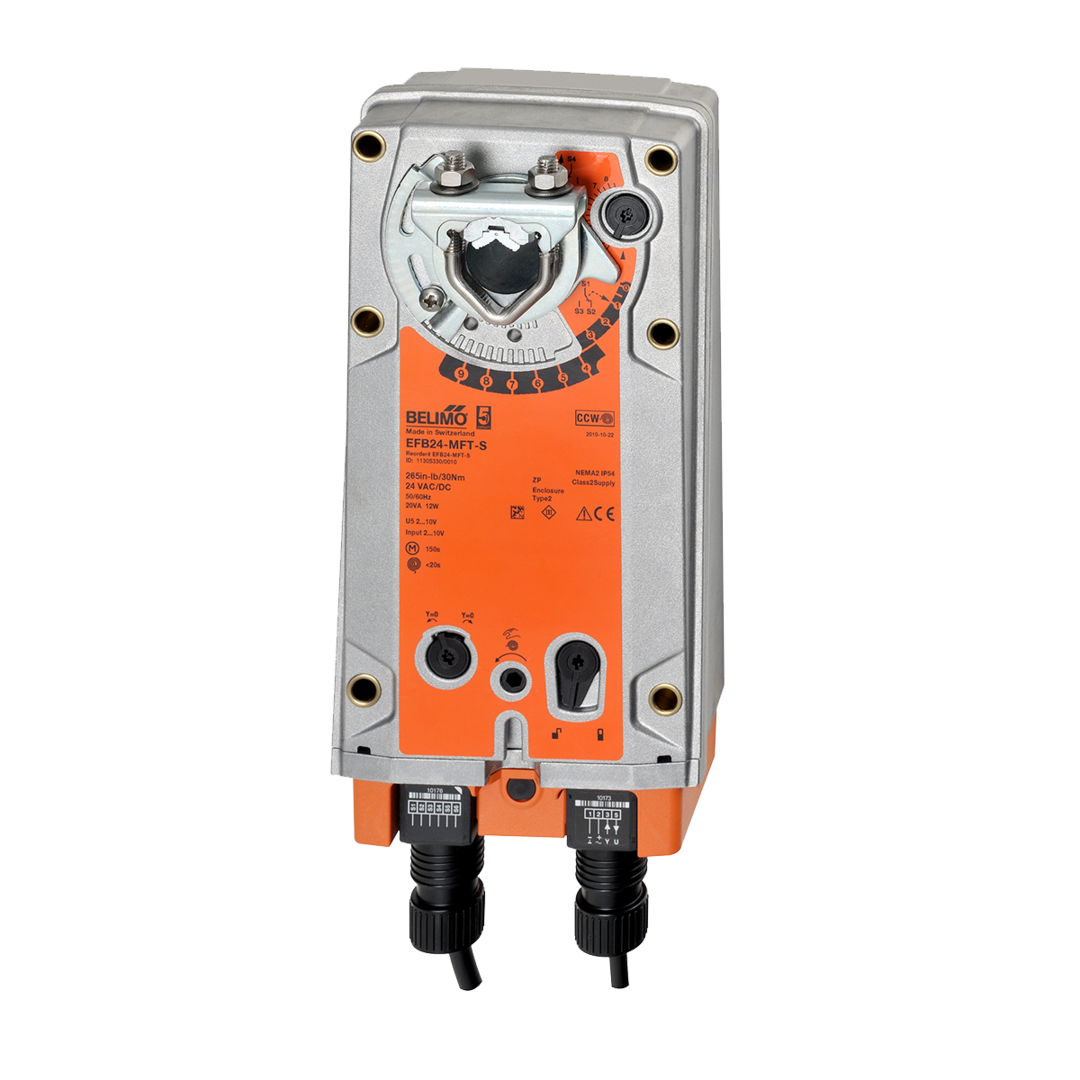

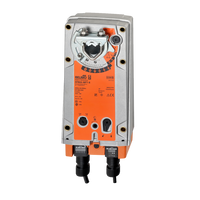

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EFX120-S
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo EFX120-S Documents

Datasheet Installation Instructions More Info

Overview

Details for EFX120-S

Damper Actuator | 270 in-lb | Spg Rtn | 100 to 240V | On/Off

For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer's specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. Maximum of two EF's can be piggybacked for torque loads of up to 540 in-lbs. Minimum 3/4" diameter shaft and parallel wiring.

Specifications

Actuator Type
Spring return
Angle of Rotation
95
Auxiliary Switches
2 x SPDT
Control Type
On/Off
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
4.5 W
Power Consumption (Running)
9.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Safety Function
YES
Torque
270 in-lb [30 Nm]
Voltage AC/DC
AC 100...240 V
