B6600S-400+GKRX24-MFT N4 | CCV | 6
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: B6600S-400+GKRX24-MFT N4

Web Price:

$3,523.50
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

B6600S-400+GKRX24-MFT N4 | CCV | 6" | 2 Way | 400 Cv | w/ Electronic FS | 24V | MFT | NEMA 4 | Belimo

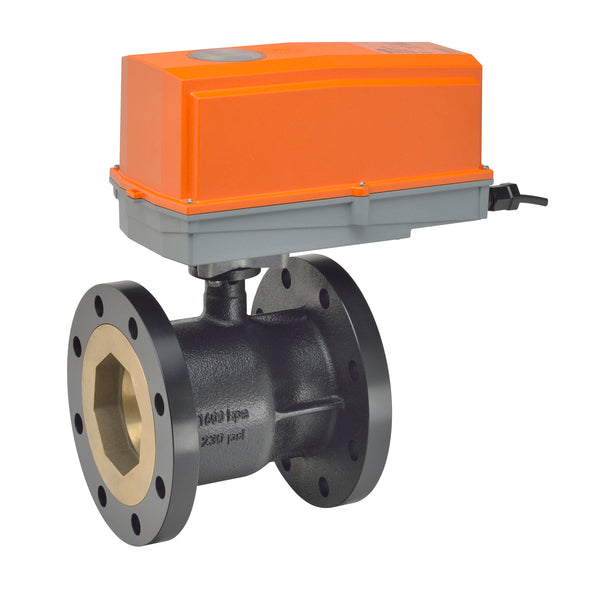

Characterized Control Valve (CCV), 6", 2-way, ANSI Class 125, Cv 400 |Valve Actuator, Electronic fail-safe, AC/DC 24 V, MFT/programmable, NEMA 4X

Belimo | B6600S-400+GKRX24-MFT N4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6600S-400+GKRX24-MFT N4

Documents and manuals

Belimo B6600S-400+GKRX24-MFT N4 Documents

Overview

Details for B6600S-400+GKRX24-MFT N4

CCV | 6" | 2 Way | 400 Cv | w/ Electronic FS | 24V | MFT | NEMA 4

Specifications

Valve specifications
Angle of Rotation
95
ANSI Class
125
Controllable Flow Range
75B0
Cv
400
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
6" [150]
Actuator specifications
Actuator Type
Electrical fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
cable
Manual Override
Under cover
Power Consumption (Holding)
3 W
Power Consumption (Running)
12 W
Running Time (Fail-safe)
<35 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
