B6250S-110+AFRX24 N4 | CCV | 2.5" | 2 Way | 110 Cv | Spg Rtn | 24V | On/Off | NEMA 4 | Belimo

Characterized Control Valve (CCV), 2 1/2", 2-way, ANSI Class 125, Cv 110 |Valve Actuator, Spring return, AC/DC 24 V, On/Off, NEMA 4X

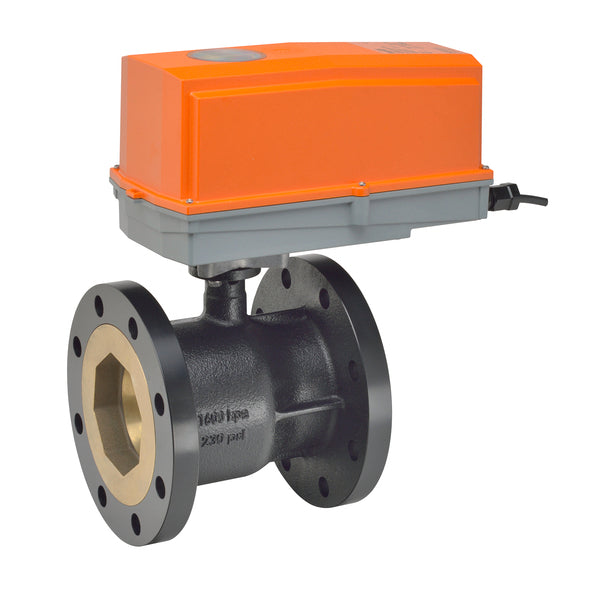

Belimo | B6250S-110+AFRX24 N4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6250S-110+AFRX24 N4

Documents and manuals

Belimo B6250S-110+AFRX24 N4 Documents

Overview

Details for B6250S-110+AFRX24 N4

CCV | 2.5" | 2 Way | 110 Cv | Spg Rtn | 24V | On/Off | NEMA 4

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
125
Controllable Flow Range
75B0
Cv
110
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
2.5" [65]
Actuator specifications
Actuator Type
Spring return
Control Type
On/Off
Degree of Protection
IP66 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
2.5 W
Power Consumption (Running)
5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC/DC 24 V
