B219VSS+NFX24-MFT-X1 | Ball Valve | 0.75" | 2 Way | 30 Cv | w/ Spg Rtn | 24V | MFT | Belimo
Ball Valve (VSS), 3/4", 2-way, Cv 30 |Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, MFT/programmable

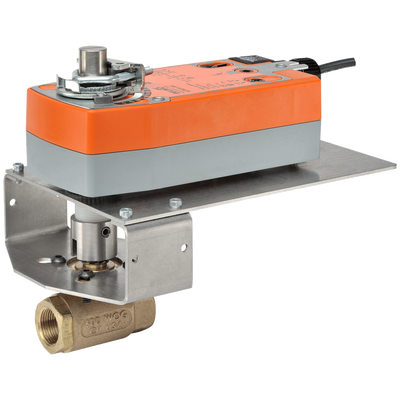

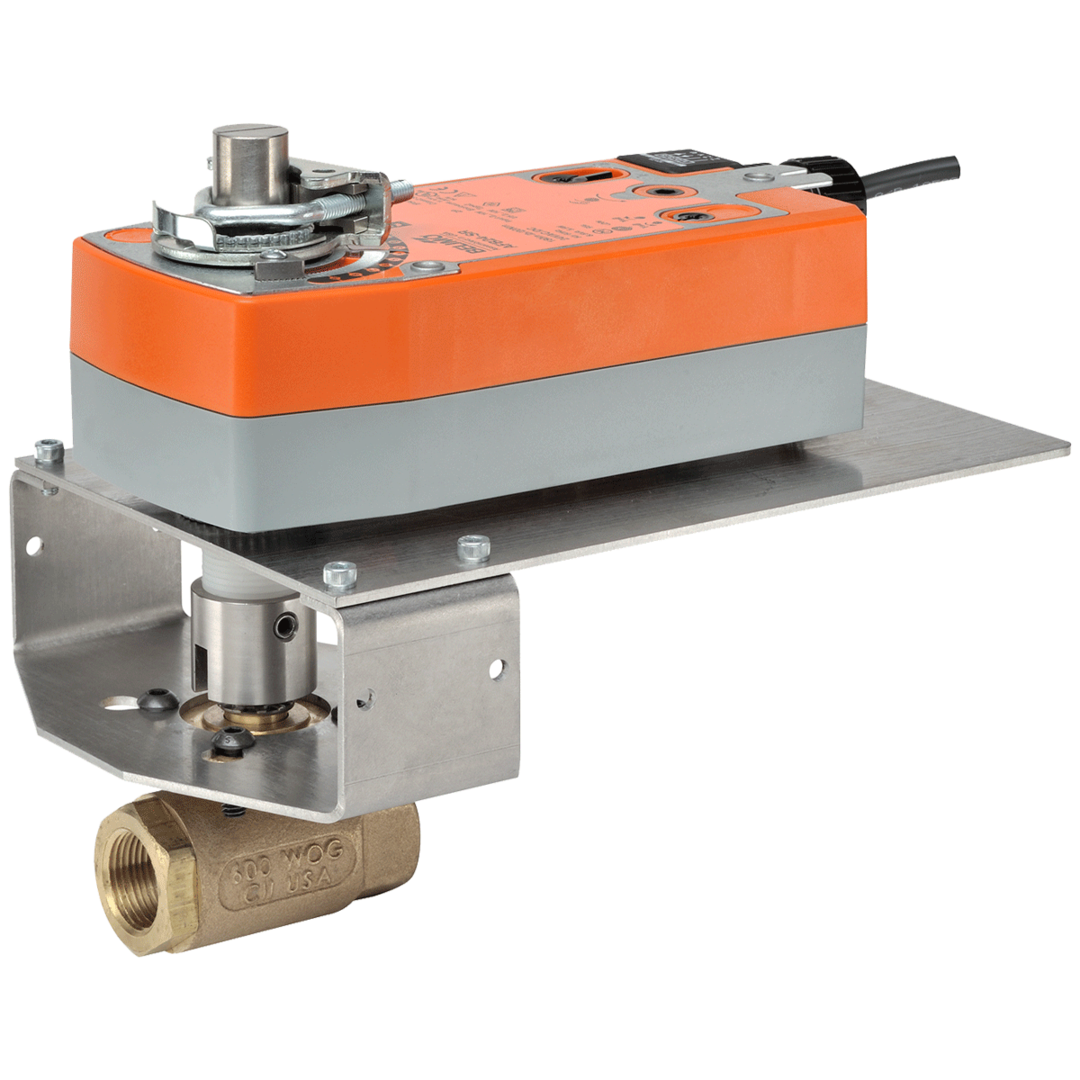

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B219VSS+NFX24-MFT-X1
Overview
Details for B219VSS+NFX24-MFT-X1
Ball Valve | 0.75" | 2 Way | 30 Cv | w/ Spg Rtn | 24V | MFT
These threaded valves are designed to provide modulating or two position control of hot or chilled water and saturated steam systems under 50 psi. Typical applications include reheat coils, VAV terminal control, unit ventilators, and air handlers, especially in areas which have minimum profile requirements. Up to 50 psi steam 1/2" - 2000 PSIG WOG, Cold Non-Shock Federal Specification: WW-V-35C, Type II Composition: SS Style: 3Specifications
- Valve specifications
- Angle of Rotation
- 95
- Controllable Flow Range
- 90B0 rotation A b AB open ccw B b AB open cw
- Cv
- 30
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen)
