B2050VS-01+LF24 US | Ball Valve | 0.5" | 2 Way | 1 Cv | w/ Spg Rtn | 24V | On/Off | Belimo

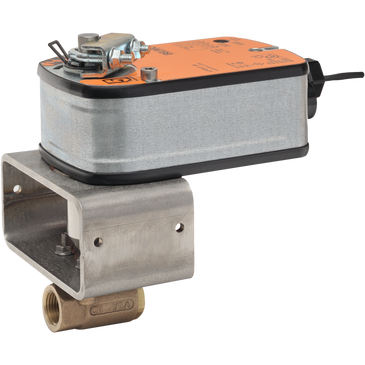

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Reviews

Overview

Details for B2050VS-01+LF24 US

Ball Valve | 0.5" | 2 Way | 1 Cv | w/ Spg Rtn | 24V | On/Off

Ball Valve | 0.5" | 2 Way | 1 Cv | w/ Spg Rtn | 24V | On/Off

Application

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV Box re-heat coils and bypass loops.

This valve is suitable for use in a hydronic system with variable flow. This valve is designed with MFT functionality which facilitates the use of various control input.

Specifications

Item Number: B2050VS-01+LF24 US
Brand: Belimo
Control Input: On/Off
Control Valves Type: Ball Valve
Cv / GPM: 1Â Cv
Spring Return: Spring Return
Valve Size: 0.5" - 2 Way
Voltage: 24V
Actuator specifications
Actuator Type: Spring return
Degree of Protection: IP54 NEMA 2
Electrical Connection: cable
Power Consumption (Holding): 2.5 W
Power Consumption (Running): 5 W
Running Time (Fail-safe): <25 s
Running Time (Motor): 75 s / 90B0
Voltage AC/DC: AC/DC 24 V

Valve specifications
Angle of Rotation: 90
Controllable Flow Range: 90B0 rotation
Cv: 1
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol steam
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 0.5" [15]

Documents and manuals

Belimo B2050VS-01+LF24 US Documents

Datasheet Installation Instructions More Info
