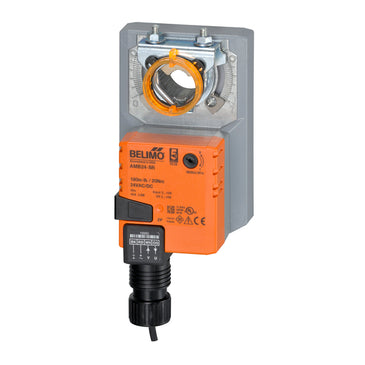

Belimo | AMX24-SR
The photo is for representation purposes only and may not be a photo of product being purchased.

AMX24-SR | Damper Actuator | 180 in-lb | Non-Spg Rtn | 24V | Modulating | Belimo

SKU: AMX24-SRBrand: BelimoCondition: New

Details for AMX24-SR

FREE SHIPPING ON ALL BELIMO PRODUCTS! (some exceptions apply)

Damper Actuator | 180 in-lb | Non-Spg Rtn | 24V

FREE SHIPPING ON ALL BELIMO PRODUCTS! (some exceptions apply)

Damper Actuator | 180 in-lb | Non-Spg Rtn | 24V | Modulating

Read MoreView accessories
Brand: BelimoSKU: AMX24-SR
List Price
$604.00
$271.80
Availability: This product is currently available
This item ships FREE
Shipping and Returns Terms

Belimo AMX24-SR Documents

Details for AMX24-SR

FREE SHIPPING ON ALL BELIMO PRODUCTS! (some exceptions apply)

Damper Actuator | 180 in-lb | Non-Spg Rtn | 24V | Modulating

Description

Application

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.

The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp, 1/2” self-centered default. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.

The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 W resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.

Operation

The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.

The AMB(X) series provides 95° of rotation and a visual indicator indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover.

The AMB(X)24-SR… actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode.

Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto the actuator body for signaling and switching functions.
