AMX24-MFT95-X1 | Valve Actuator | Non-Spg | 24V | 0-135 ohms | Belimo (OBSOLETE)

Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 0...135 Ω, MFT/programmable

Belimo | AMX24-MFT95-X1

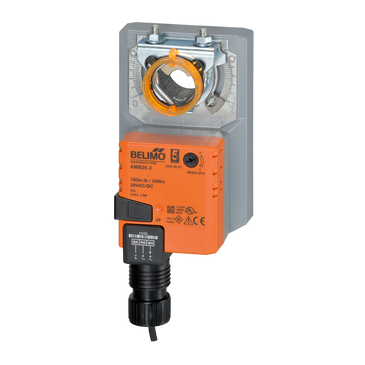

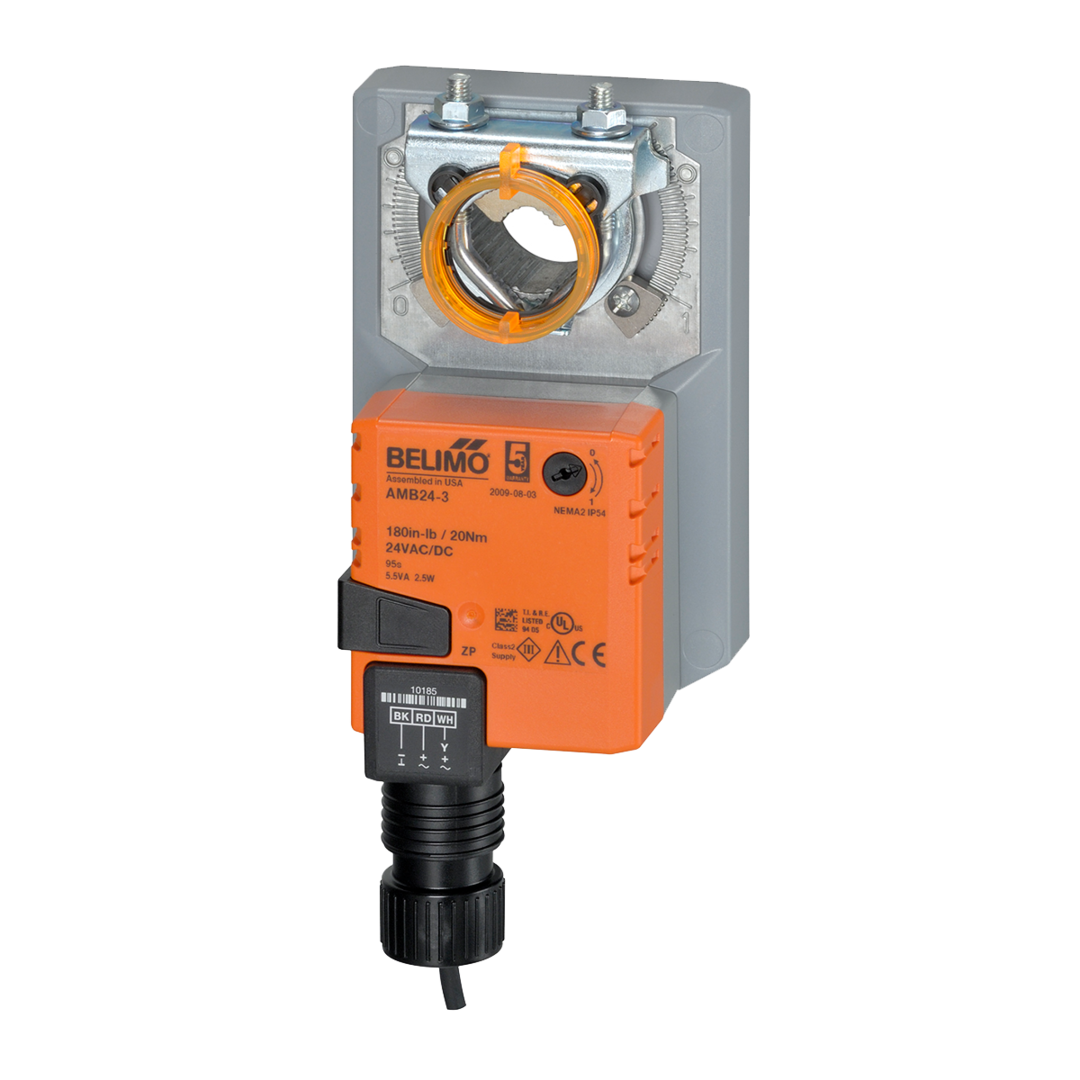

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AMX24-MFT95-X1
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo AMX24-MFT95-X1 Documents

Datasheet Installation Instructions More Info

Overview

Details for AMX24-MFT95-X1

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Valve Actuator | Non-Spg | 24V | 0-135 ohms

Modulating, Non-Spring Return, 24 V, 135 Ω Input

Specifications

Valve specifications
Angle of Rotation
95
Controllable Flow Range
90B0 rotation
Cv
43
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
0...135 N)
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.3 W
Power Consumption (Running)
3.5 W
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
$507.60 each
Belimo S2A Auxiliary switch | 2x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Blackhawk Supply
S2A | Auxiliary switch | 2x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Belimo
$93.60 each
Belimo S1A Auxiliary switch | 1x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Blackhawk Supply
S1A | Auxiliary switch | 1x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Belimo
$62.10 each
Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply
ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo
$15.75 each
Belimo ZS-100 Weather shield - galvaneal (13" L x 8" W x 6" D). | Blackhawk Supply
ZS-100 | Weather shield - galvaneal (13" L x 8" W x 6" D). | Belimo
$113.40 each
Belimo ZG-X40 120 to 24 VAC | 40 VA transformer. | Blackhawk Supply
ZG-X40 | 120 to 24 VAC | 40 VA transformer. | Belimo
$67.05 each
