AMX24-3-X1 | Valve Actuator | Non-Spg | 24V | On/Off/Floating Point | Belimo

Belimo | AMX24-3-X1

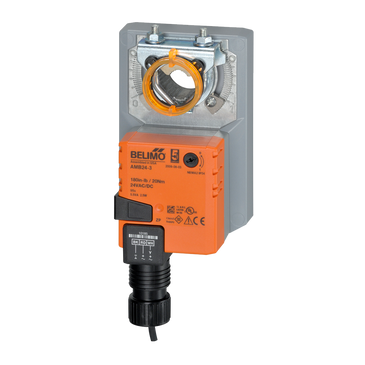

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for AMX24-3-X1

Valve Actuator | Non-Spg | 24V | On/Off/Floating Point

Specifications

Item Number
AMX24-3-X1
Brand
Belimo
Actuator Type
Valve
Control Input
Floating
Spring Return
Non-Spring Return
Voltage
24V
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
95 s / 90B0
Voltage AC/DC
AC/DC 24 V
Valve specifications
Angle of Rotation
95
Controllable Flow Range
90B0 rotation
Cv
43
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
