AMX120-SR | Damper Actuator | 180 in-lb | Non-Spg Rtn | 100 to 240V | Modulating | Belimo
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: AMX120-SR

Web Price:

$364.50
Availability: This product is currently available to purchase
This item ships FREE*
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

AMX120-SR | Damper Actuator | 180 in-lb | Non-Spg Rtn | 100 to 240V | Modulating | Belimo

Belimo | AMX120-SR

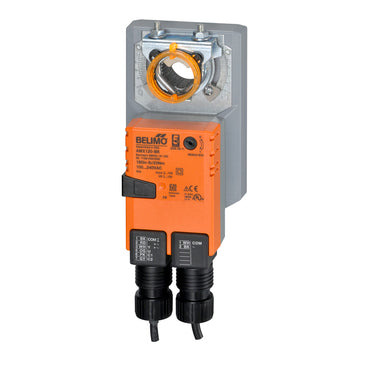

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for AMX120-SR

Damper Actuator | 180 in-lb | Non-Spg Rtn | 100 to 240V | Modulating

Application

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.

The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp, 1/2” self-centered default. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.

The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 Ω resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.

Operation

The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.

The AMX series provides 95° of rotation and a visual indicator indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover.

The AMX120-SR actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode.

Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto the actuator body for signaling and switching functions.


Specifications

Actuator Type
Non fail-safe
Angle of Rotation
315
Control Type
DC 2...10 V
Degree of Protection
852
Electrical Connection
cable
Power Consumption (Holding)
1 W
Power Consumption (Running)
4 W
Protection category
IP54
Running Time (Motor)
90 s / 90B0
Running Time range (Motor)
90 or 150 s
Torque
180 in-lb [20 Nm]
Voltage AC/DC
AC 100...240 V

Documents and manuals

Belimo AMX120-SR Documents

Accessories

$1,680.75 each
$1,386.00 each
$919.35 each
$529.65 each
$286.20 each
