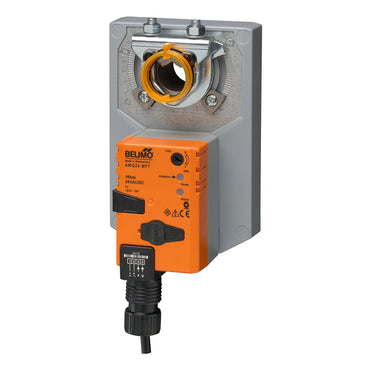

AMQX24-MFT | Damper Actuator | 140 in-lb | Non-Spg Rtn | 24V | Modulating | Belimo
Configurable Damper Actuator, 140 in-lb [16 Nm], Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AMQX24-MFT
Documents and manuals
Belimo AMQX24-MFT Documents
Overview
Details for AMQX24-MFT
Damper Actuator | 140 in-lb | Non-Spg Rtn | 24V | Modulating
For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The default parameters for 2...10 V applications of the ..MFT actuator are assigned during manufacturing. If necessary, custom versions of the actuators can be ordered. The parameters can be changed by two means: pre-set and custom configurations from Belimo or on-site configurations using the Belimo PC-Tool software.Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 15 W
- Running Time (Motor)
- 7 s / 90B0
- Running Time range (Motor)
- 10 15 or 20 s
- Safety Function
- NO
- Torque
- 140 in-lb [16 Nm]
- Voltage AC/DC
- AC/DC 24 V
