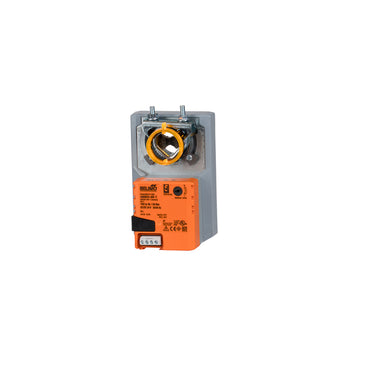

AMB24-SR-T | Damper Actuator | 180 in-lbs [20 Nm] | Non fail-safe | AC/DC 24V | DC2-10V | terminals | Belimo

Damper Actuator | 180 in-lbs [20 Nm] | Non fail-safe | AC/DC 24V | DC2-10V | terminals

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp, 1/2" self-centered default. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 Ω resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.
