AFXUP | Damper Actuator | 180 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off | Belimo
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: AFXUP

Web Price:

$385.20
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

Email

AFXUP | Damper Actuator | 180 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off | Belimo

Configurable Damper Actuator, 180 in-lb [20 Nm], Spring return, AC 24...240 V / DC 24...125 V, On/Off

Belimo | AFXUP

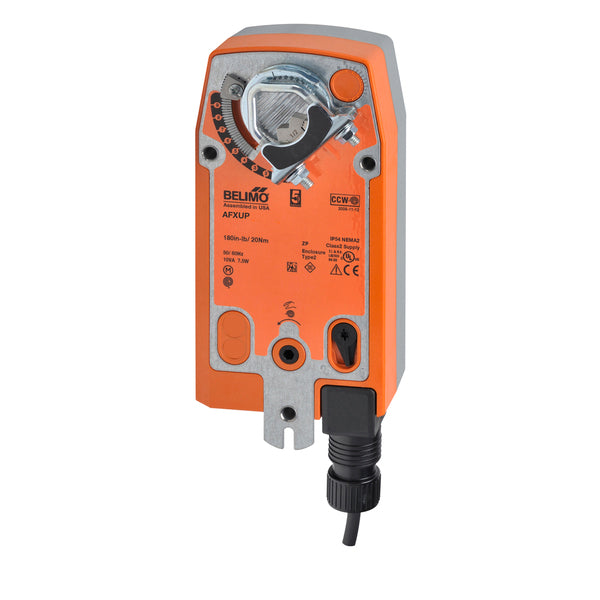

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFXUP
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo AFXUP Documents

Datasheet Installation Instructions More Info

Overview

Details for AFXUP

Damper Actuator | 180 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off

Butterfly Valve with Lug types Resilient Seat, 304 Stainless Steel Disc

Specifications

Actuator Type
Spring return
Angle of Rotation
95
Control Type
On/Off
Degree of Protection
852
Electrical Connection
cable
Power Consumption (Holding)
3.5 W
Power Consumption (Running)
7 W
Protection category
IP54
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Torque
180 in-lb [20 Nm]
Voltage AC/DC
AC 24...240 V / DC 24...125 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
$507.60 each
Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply
ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo
$15.75 each
Belimo KH-AFB AF/NF crankarm (with 3/4" diameter shaft pass through). | Blackhawk Supply
KH-AFB | AF/NF crankarm (with 3/4" diameter shaft pass through). | Belimo
$20.25 each
Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Blackhawk Supply
KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo
$23.25 each
Belimo KH8 Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Blackhawk Supply
KH8 | Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Belimo
$15.75 each
Belimo KG10A Ball joint for 3/8" diameter rod | zinc plated. | Blackhawk Supply
KG10A | Ball joint for 3/8" diameter rod | zinc plated. | Belimo
$26.85 each
