AFX24MFT95N4 | Damper Actuator | 180 in-lb | Spg Rtn | 24V | 0-135 ohms | NEMA 4 | Belimo (OBSOLETE)

Configurable Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, 0...135 Ω, NEMA 4X, MFT/programmable [Part# AFX24MFT95N4 is the same as AFX24-MFT95 N4]

Brand: BelimoSKU: AFX24MFT95N4

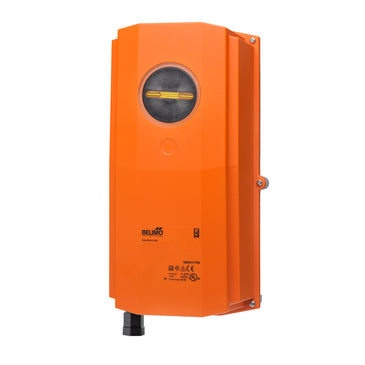

Belimo | AFX24MFT95N4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFX24MFT95N4
Overview & Specifications ReviewsParts & Accessories

Overview Details for AFX24MFT95N4

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Damper Actuator | 180 in-lb | Spg Rtn | 24V | 0-135 ohms | NEMA 4

Specifications

Actuator Type
Spring return
Angle of Rotation
95
Control Type
0...135 N)
Degree of Protection
IP66 NEMA 4X UL Enclosure Type 4X
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
7.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
150 s / 90B0
Running Time range (Motor)
70...220 s
Safety Function
YES
Torque
180 in-lb [20 Nm]
Voltage AC/DC
AC/DC 24 V
