SKU: SH8AFB24-SR-S | Damper Actuator | 180 in-lb | Spg Rtn | 24V | Modulating | Belimo
Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, 2...10 V, 2 x SPDT, modulating

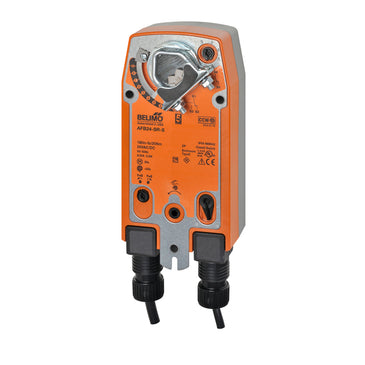

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFB24-SR-S
Documents and manuals
Belimo AFB24-SR-S Documents
Overview
Details for AFB24-SR-S
Damper Actuator | 180 in-lb | Spg Rtn | 24V | Modulating
For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a DC 2...10 Vor, with the addition of a 500Ω resistor, a 4...20 mA control input from an electronic controller or positioner. A DC 2...10 V feedback signal is provided for position indication.Specifications
- Actuator Type
- Spring return
- Angle of Rotation
- 95
- Auxiliary Switches
- 2 x SPDT
- Control Type
- DC 2...10 V
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Direction of Rotation (Fail-Safe)
- Reversible with cw/ccw mounting
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 5.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 95 s / 90B0
- Safety Function
- YES
- Torque
- 180 in-lb [20 Nm]
- Voltage AC/DC
- AC/DC 24 V
