AFX24-MFT-S-X1 | Valve Actuator | Spg Rtn | 24V | MFT | SW | Belimo

Belimo | AFX24-MFT-S-X1

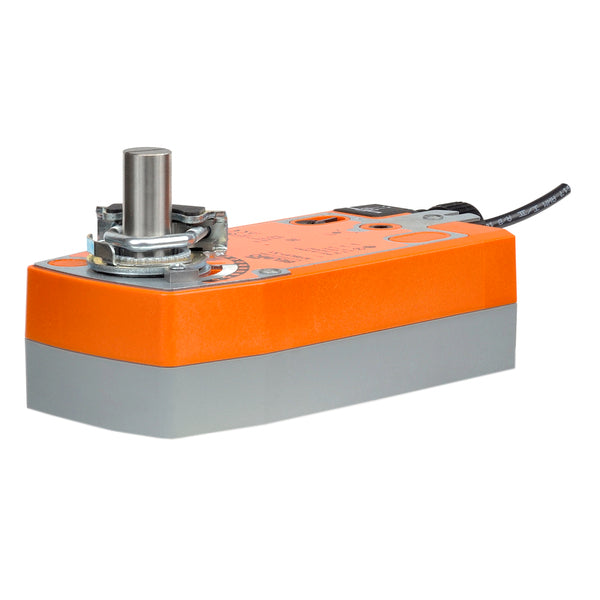

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Parts & Accessories Reviews

Overview

Details for AFX24-MFT-S-X1

Valve Actuator | Spg Rtn | 24V | MFT | SW

Resilient Seat, 304 Stainless Steel Disc

Specifications

Item Number: AFX24-MFT-S-X1
Brand: Belimo
Actuator Type: Valve
Control Input: Belimo MFT (Modulating)
End Switch: Yes
Spring Return: Spring Return
Voltage: 24V
Actuator specifications
Actuator Type: Spring return
Auxiliary Switches: 2 x SPDT
Control Type: MFT/Programmable
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Manual Override: 5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding): 3 W
Power Consumption (Running): 7.5 W
Running Time (Fail-safe): <20 s
Running Time (Motor): 150 s / 90B0
Voltage AC/DC: AC/DC 24 V

Valve specifications
Angle of Rotation: 95
ANSI Class: 300
Controllable Flow Range: 75B0
Cv: 77
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol steam
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 2" [50]

Documents and manuals

Belimo AFX24-MFT-S-X1 Documents

Datasheet Installation Instructions More Info

Accessories

ZS-260 | Explosion proof housing. | Belimo

ZS-260 | Explosion proof housing. | Belimo $1,680.75 each

ZS-300-5 | NEMA 4X | 316L stainless steel enclosure. | Belimo

ZS-300-5 | NEMA 4X | 316L stainless steel enclosure. | Belimo $1,676.70 each

ZS-300 | NEMA 4X | 304 stainless steel enclosure. | Belimo

ZS-300 | NEMA 4X | 304 stainless steel enclosure. | Belimo $1,386.00 each

PS-100 | Actuator power supply and control simulator. | Belimo

PS-100 | Actuator power supply and control simulator. | Belimo $919.35 each

UK24MOD | MODbus gateway module that can connect up to 8 MFT actuators. | Belimo

UK24MOD | MODbus gateway module that can connect up to 8 MFT actuators. | Belimo $612.45 each

UK24LON | LON gateway module that can connect up to 8 MFT actuators. | Belimo

UK24LON | LON gateway module that can connect up to 8 MFT actuators. | Belimo $612.45 each
